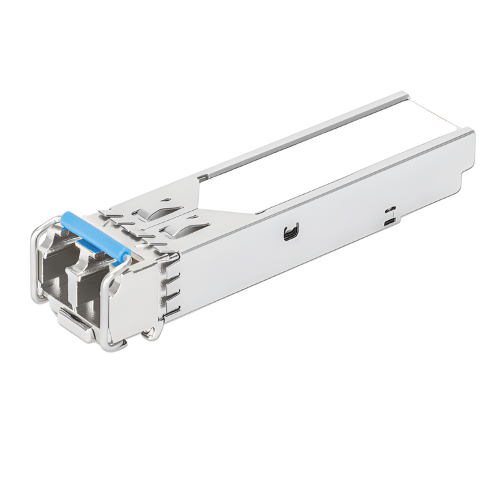

Features
- Hot – pluggable SFP+ footprint
- Supports 9.95 Gb/s to 10.3 Gb/s bitrates
- Power dissipation <1 W
- Single 3.3 V power supply
- Receiver limiting electrical interface
- Duplex LC connector
- Built-in digital diagnostic functions
- 10 g sfp + reach 300 m to 49.70 mi (80 km)
- All – metal housing for superior EMI performance
- Advanced firmware allows customer system encryption information
- Temperature range 32 °F to 158 °F (0 °C to +70 °C)
Technical Specifications
| Transceiver form factor | SFP+ |
| Transmission speed | 10 GE |
| Centre wavelength | 1550 nm |
| Standards compliance | 10 G BASE – ZR |
| Connector type | LC Dual |
| Applicable cable distance | Single- mode fiber 49.70 mi (80 km) |
| Transmit power | 0 dBm to 4.0 dBm |
| Maximum receiver sensitivity | -24.0 dBm |
| Overload power | -7.0 dBm |
| Extinction ratio | 9 dB |
| Operating temperature | 0 °C to 70 °C (32 °F to 158 °F) |
