Overview

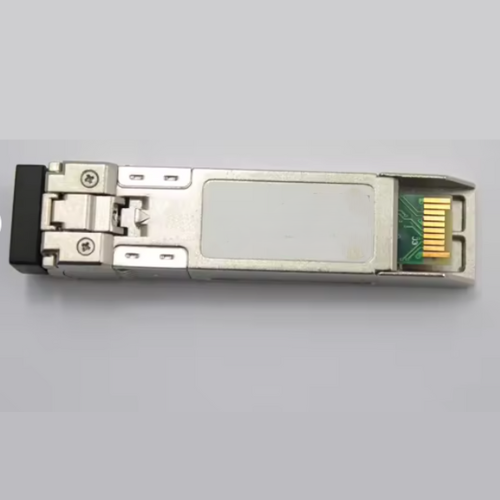

Emissions And Stack 10G BiDi SFP+ Optical Transceiver Module Single Fiber SMF 10–100km is a high-performance solution for long-distance 10 Gigabit Ethernet applications. This product enables bidirectional communication over a single fiber strand using separate wavelengths for transmit and receive, reducing deployment costs while maximizing efficiency. It is available in multiple reach options, including 10 km, 20 km, 40 km, 60 km, 80 km, and 100 km, to suit diverse network environments. With hot-pluggable design, LC simplex interface, and support for DDM, this device ensures reliable operation across FTTX, METRO, WAN, CPRI, and OTN networks.
Features
- Bidirectional communication over a single strand of SMF
- Multiple reach variants: 10 km, 20 km, 40 km, 60 km, 80 km, 100 km
- Available wavelengths: 1270/1330 nm, 1490/1550 nm
- Supports up to 10.5 Gbps data rate
- Hot-pluggable SFP+ form factor for flexible use
- LC simplex connector for easy fiber interface
- Low power consumption with stable performance
- Digital Diagnostic Monitoring (DDM) supported
- Compliant with IEEE 802.3ae and SFF-8431 standards
- Compatible with major brands (Cisco, Juniper, Arista, Nokia, Dell, ZTE, and more)
- Suitable for PON, MAN, WAN, CPRI, and OTN applications
Technical Specifications
| Specification | Details |
| Type | Fiber Optic Transceiver |
| Form Factor | SFP+ |
| Data Rate | Up to 10.5 Gbps |
| Wavelength Options | 1270/1330 nm, 1490/1550 nm |
| Transmission Distance | 10 km, 20 km, 40 km, 60 km, 80 km, 100 km |
| Connector Type | LC Simplex |
| Fiber Type | Single Mode Fiber (SMF) |
| Optical Components | DFB/EML + PIN/APD |
| Compatibility | Mikrotik, FS, Netgear, Juniper, Arista, ZTE, Nokia, Dell-EMC, and others |
| Compliance | IEEE 802.3ae, SFF-8431 |
| Diagnostics | DDM Supported |
| Voltage Supply | 3.3V |
| Operating Temperature | 32°F to 158°F (0°C to 70°C) |
