Overview

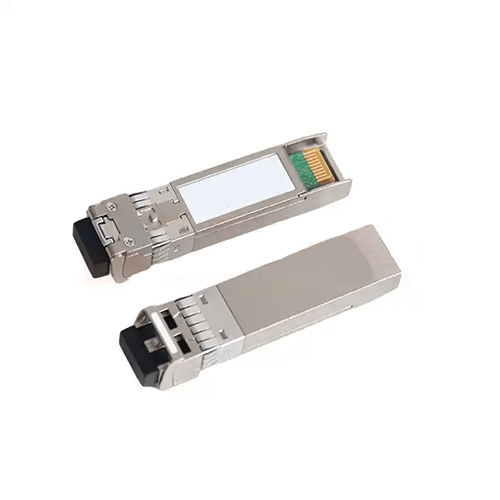

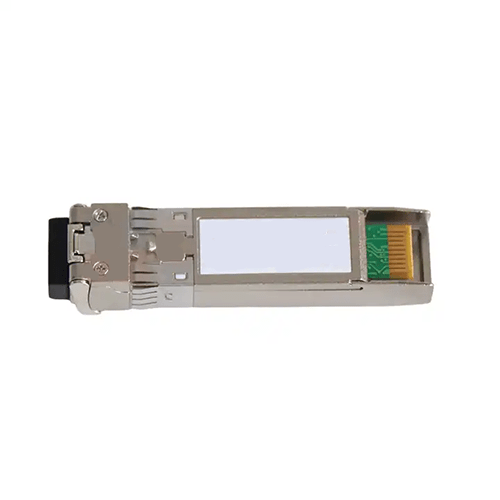

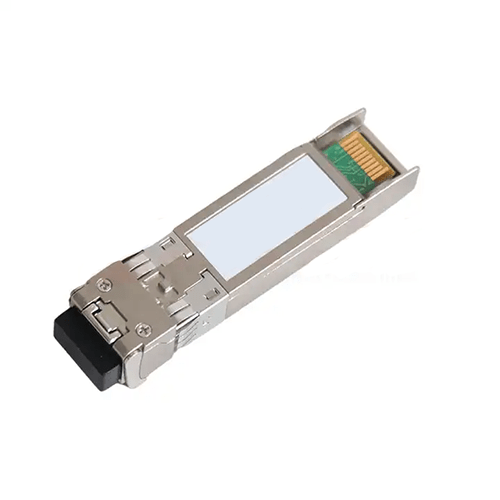

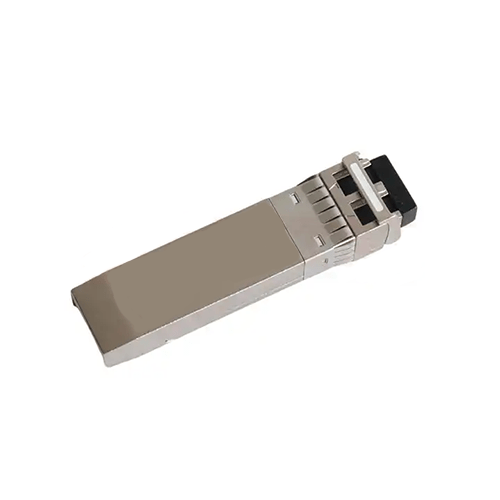

Emissions And Stack CWDM SFP+ Optical Transceivers is to be used on a series of Switches, Routers, Servers, Network Interface Card Etc. Package SFP+, Data Rate:10 G, Wavelength 1470 nm to 1610 nm, TX EML CWDM, RX: APD, TX Power -1 dBm to 4 dBm, RX Sensitivity -23 dBm, Compatible With the Brand Cisco, Juniper, Brocade, Arista, Mellanox, HPE, Dell, Dell Force10, Huawei…etc is optional.
Features
- Hot-pluggable
- RoHS Compliant
- Low power dissipation
- Single +3.3 V power supply
- Up to 11. 1Gbps Data Links
- Metal enclosure, for lower EMI
- CWDM EML transmitter and APD receiver
- 2-wire interface with integrated Digital Diagnostic monitoring
- Up to 49.71 mi (80 km) transmission distance over Single Mode Fiber
- Without CDR or with CDR supported 9.95 Gbps to 11.3Gb/s reference-free
Technical Specifications
| Power Supply Voltage | 3. 13 V to 3.47 V |
| Supply Current | 430 A to 460 A |
| Data Rate | 10.3125 Gbps to 11.3 Gbps |
| Fiber Length 9/ 125μm core SMF | 49.7 mi (80 km) |
| Transmitter differential input voltage |
180 V to 700 V |
| Receiver differential output Voltage |
400 V to 800 V |
| Input differential impedance | 100 Ω |
| Transmit disable voltage | 2 V |
| Transmit enable voltage | +0.8 Vee |
| Data output rise time | 28 ps |
| Data output fall time | 28 ps |
| Transmit Disable Assert Time | 10 us |
| LOS output high level | 2.0 V |
| LOS output low level | Vee + 0.8 |
| Operating Case Temperature (Commercial) | 32 °F to 158 °F (0 ℃ to 70 ℃) |
| Operating Case Temperature (Industrial) | -40 °F to 185 °F (-40 ℃ to 85 ℃) |
