Overview

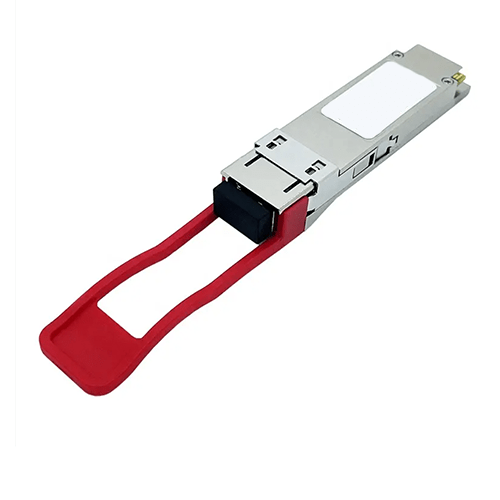

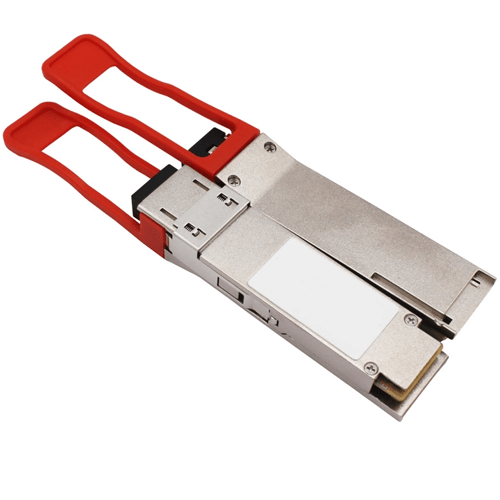

Emissions And Stack CWDM duplex optical transceiver module is a transceiver module designed for 37.28 mi (60 km) optical communication applications. The design is compliant to 40GBASE-ZR4 of the IEEE P802.3 ba standard. The module converts 4 input channels of 10 Gb/s electrical data to 4 CWDM optical signals and multiplexes them into a single channel for 40 Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40 Gb/s input into 4 CWDM channels signals and converts them to 4 channel output electrical data.
Features
⦁ 4 CWDM lanes MUX or DEMUX design
⦁ Up to 11.2 Gbps per channel bandwidth
⦁ Aggregate bandwidth of >40 Gbps
⦁ Duplex LC connector
⦁ Compliant with 40 G Ethernet IEEE 802.3 ba and 40GBASE-ZR4 Lite
⦁ QSFP MSA compliant
⦁ APD photodetector
⦁ Compliant with QDR or DDR InfiniBand data rates
⦁ Single +3.3 V power supply operating
⦁ Built-in digital diagnostic functions
⦁ Temperature range 32 °F to 158 °F (0 °C to 70 °C)
⦁ RoHS Compliant Part
Technical Specifications
| Use | 40 GBASE-LR4 Ethernet |
| Network | Wired LAN, TCP, POE, 4G |
| Form Factor | QSFP+ |
| Max Data Rate | 40 g/s |
| Fiber Type | SMF |
| Connector | Double LC |
| Material | Metal |
| OEM Support | YES |
| Max Cable Distance | 37.28 mi (60 km) |
| Wavelength | 1310 nm CWDM4 |
