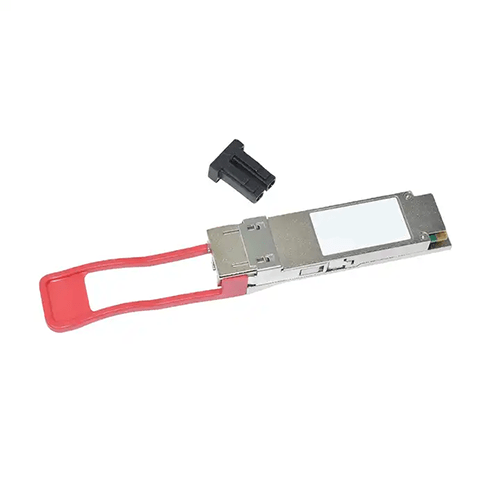

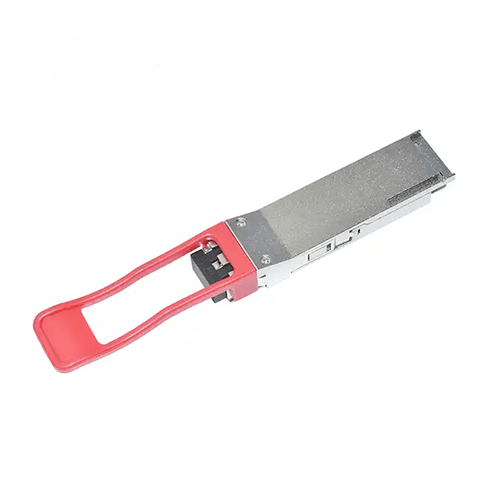

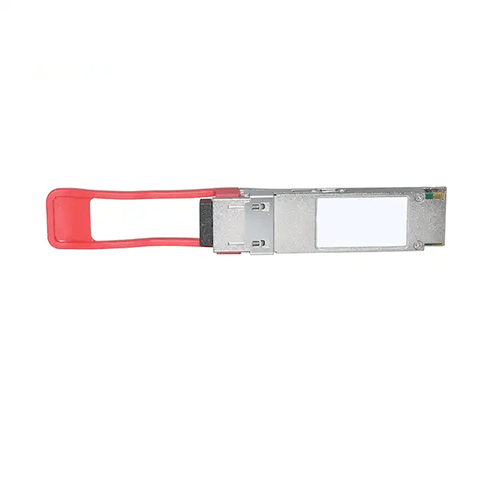

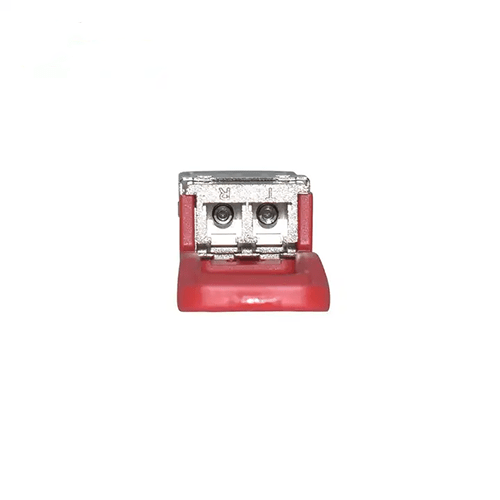

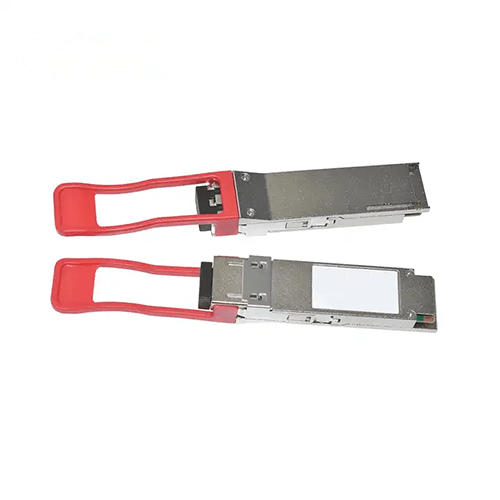

40G CWDM Fiber Transceiver, 40 km Range, 1270-1330 nm Wavelength – Emissions And Stack

High-speed 40G CWDM transceiver with up to 40 km range and 1270-1330 nm wavelength. QSFP+ compliant, low power consumption, and RoHS certified.

SKU: EMSXKCT-112 Category:

Features

  • 4 CWDM channels are 1271 nm, 1291 nm, 1311 nm and 1331 nm
  • Single +3.3 V power supply
  • QSFP+ MSA compliant
  • Up to 24.85 mi (40 km) transmission
  • Maximum 3.5 W operation power
  • RoHS compliant
  • Compliant with IEEE802.3ba
  • Compliant with QSFP+ MSA SFF-8436



Technical Specifications

Wavelength 1270 nm to 1330 nm
Data rate 40 G
Distance transmission 24.85 mi (40 km)
Connector LC
Operating case temperature 32 °F to 158 °F (0 ℃ to 70 ℃)
