Overview

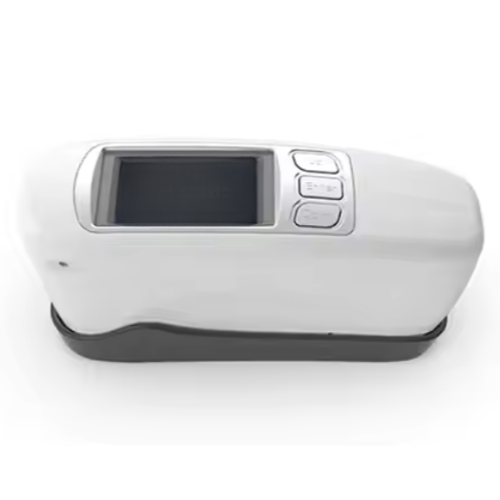

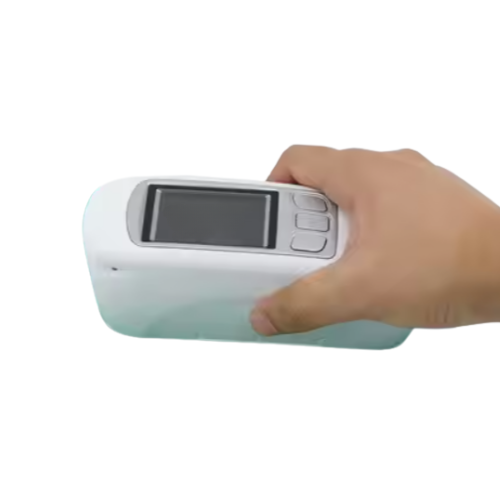

Emissions and Stack 60° Angle High Accuracy Gloss Meter with Storage offers this high-precision gloss meter designed for single-angle measurement at 60°, ideal for professionals in quality control and surface inspection. This device features advanced dual optical path technology and delivers ultra-high repeatability of 0.2GU, making it reliable for consistent performance across multiple industries such as automotive, coatings, plastics, and ceramics.
Powered by a rechargeable lithium battery, this product supports up to 100,000 measurements per charge, significantly reducing downtime and operating costs. It includes a 2.4-inch high-resolution color display that ensures clear visibility of data, while its large internal memory allows storage of up to 5,000 test records. Users can also manage and export data using standard QC software via a USB Type-C interface.
This device meets the stringent JJG 696-2015 gloss meter standard, ensuring dependable accuracy for professional applications. With fast measurement speeds of under one second and user-friendly statistical and simple modes, it is a practical tool for industries that demand precise gloss analysis.
Features
- Single 60° Measurement Angle
- High Repeatability and Accuracy
- Dual Optical Path Technology
- Long Battery Life
- Large Data Storage
- Standard QC Software Integration
Technical Specifications
| Model | CS-300 SE |
| Measuring Angle | 60° |
| Measuring Spot (mm) | 9 × 15 |
| Measuring Range | 0 GU to 200 GU |
| Division Value | 0.1 GU |
| Measurement Repeatability | 0 GU to 100 GU: 0.2 GU; 100 GU to 200 GU: 0.2% GU |
| Measurement Mode | Simple mode and statistical mode |
| Measurement Accuracy | Meets JJG 696-2015 gloss meter standard |
| Measuring Time | < 1 second |
| Data Storage | 5,000 records |
| Language | Chinese / English |
| Battery | 3000 mAh lithium battery |
| Battery Life | Up to 100,000 measurements per full charge |
| Interface | Type-C |
| Screen Size | 2.4 in (Resolution: 320 × 240) |
| Operating Temperature | 32 °F to 104 °F (0 ° C to 40 °C) |
| Humidity | < 85% relative humidity, no condensation |
| Accessories | 5V/2A charger, data cable, manual, USB flash drive (software), calibration plate, third-party verification certificate |
| Applications | Paints, inks, coatings, electroplating, plastics, electronics, hardware, etc. |
| Volume | 6.50 in × 2.01 in × 3.03 in (165mm × 51mm × 77mm (Length × Width × Height)) |
| Weight | About 14.11 oz (400 g) |
