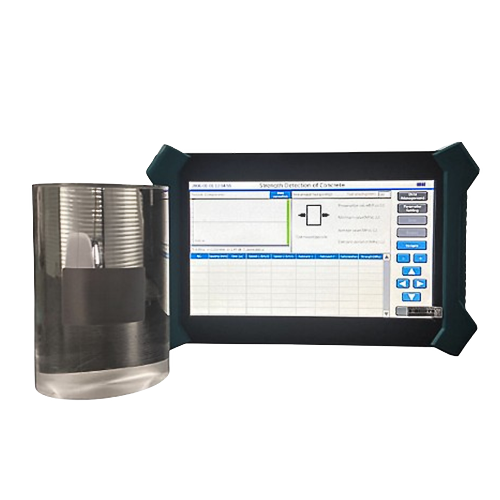

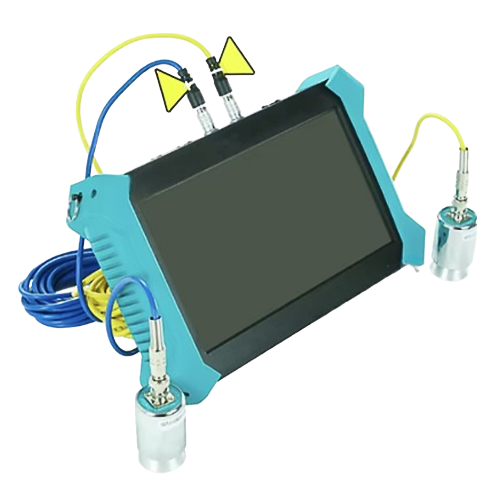

Features
- Combines pile integrity, strength, defect, crack, and diaphragm wall tests.
- 10.1-inch high-brightness tft touchscreen display.
- Dual-channel ultrasonic acquisition for accurate detection.
- Dynamic range 146 db., 1–500 khz bandwidth, adjustable sampling.
- Built-in storage ≥8 gb, USB/Bluetooth/wi-fi, optional cloud transfer.
- Battery 8–10 hrs., ac/dc support, compact (300×200×55 mm), ip65 rated.
Technical Specifications
| Specification | Details |
| Measurement Principle | Ultrasonic Pulse Velocity (UPV) for concrete testing |
| Functional Capabilities | Pile integrity testing, strength estimation, defect detection, crack depth/width analysis |
| Display | 10.1-in high-brightness TFT color LCD, touch screen |
| Data Storage | Built-in HDD (>8 GB) + external U-Disk support |
| Data Transmission Channels | USB, Bluetooth, Wi-Fi; optional wireless cloud transport |
| Acquisition Mode | Single-channel manual, point-by-point acquisition (later models support dual channels) |
| Signal Triggering Mode | Signal-triggered acquisition |
| Sampling Period Range | 0.05 to 409.6 µs (multi-stage) |
| Acoustic Time Accuracy | ±0.05 µs |
| Acoustic Time Range | ±1,677,700 µs |
| Crack Width Measurement | Range: 0 to 10 mm (0 to 0.39 in); Accuracy: ±0.01 mm |
| Dynamic Range | 146 dB |
| Bandwidth | 1 kHz to 500 kHz |
| Receiving Sensitivity | ≤ 10 µV |
| Gain Accuracy | ±0.5 dB |
| Emission Voltage Levels | 65 V, 250 V, 500 V, 1000 V (selectable gears) |
| Power Supply Options | Built-in lithium battery; external AC/DC (220 V to 16 V) |
| Operating Duration | ≥ 8 hours per charge |
| Operating Temperature | −10 °C to +40 °C (14 °F to 104 °F) |
| Operating Humidity | < 90% RH |
| Weight (Device Only) | 2.2 kg (4.85 lb.) |
| Dimensions (L × W × H) | 300 mm × 200 mm × 55 mm (11.8 in × 7.9 in × 2.2 in) |
| Channel Configuration | 1 transmit + 1 receive; later models support 1 transmit + 2 receive |
