Overview:

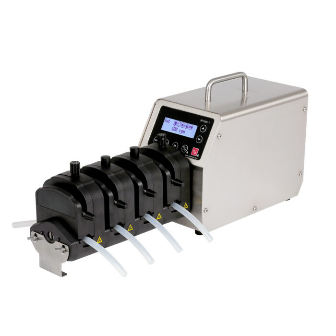

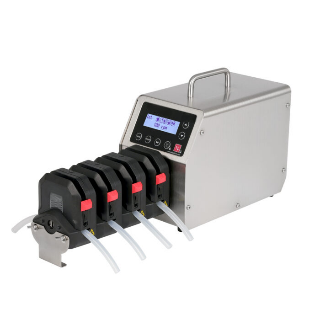

Emissions And Stack’s Basic Variable Speed Peristaltic Pump not only has basic functions such as start-stop, speed adjustment, full speed and direction, but also has higher speed accuracy. The display is upgraded from digital tube to LCD, and the Chinese and English display is more intuitive. Added multi-stage timing operation and suction function, more convenient operation, and can easily connect and control other equipment through MODBUS protocol RS485 communication. The large torque stepper motor can adapt to various pump heads and support the cascade use of multiple pump heads.
Features:
- 128 * 32 L CD screen, Chinese and English switching, simple parameter setting, intuitive status display.
• Delay start and delay stop function.
• Start/stop, reversible direction, full speed, adjust speed, stat e memory (power-down-memory).
• External analog speed regulation, external control signal control start and st op, positive and negative, physical isolation of external control signal.
• External control signal supports 5-24v wide voltage input.
• External speed control signal type (voltage or current) can be s witched through the control panel.
• RS485 communication interface, MODBUS protocol is available, support communication parameter setting easy to connect other equipment’s.
• Circuit board with conformal coating makes it dust-proof and moisture-proof.
• Super anti-interference feature, wide input voltage range, acceptable for the complex power environment .
• Stainless steel housing is easy to clean, effectively preventing corrosion from various acids, bases and organic solvents.
Technical Specification
| Specification | Details |
| Flow Range | 0.00011 ～ 750 mL/min |
| Speed Range | 0.1 – 150 rpm |
| Speed Resolution | 0.1 rpm (≤100 rpm), 1 rpm (>100 rpm) |
| Speed Accuracy | < ±0.2% |
| Working Time | 0.1 ～ 999 S/Min/H/D |
| Dispensing Interval | 0.1 ～ 999 S/Min/H/D |
| Dispensing Cycles | 1 ～ 999 (0 for Infinite cycle) |
| External Control (Input) | Start/Stop & Reverse (5-24V); Analog (0-5V, 0-10V, 4-20mA) |
| External Control (Output) | Start/Stop & Reverse (Level Signal follows input voltage) |
| Communication | RS485 (MODBUS Protocol), DB15 Interface |
| Power Supply | AC 100 ～ 240V, 50Hz/60Hz |
| Power Consumption | < 65W |
| Working Environment | 0 ～ 40℃, Relative Humidity < 80% |
| Pump Head Options | BPP10, BPP6 |
| IP Rating | IP31 |
| Dimensions | 315 × 150 × 237 mm (L × W × H) |
| Weight | 5.3 kg |
