Overview

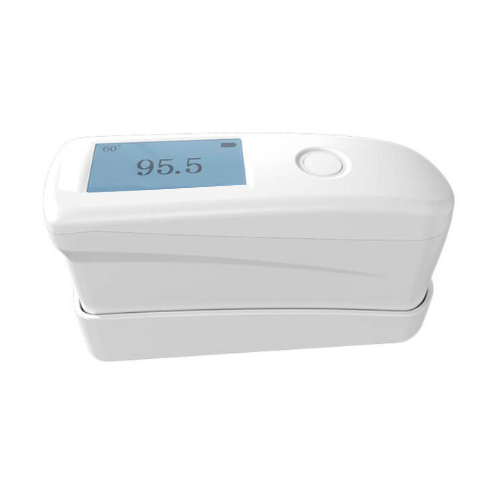

Emissions and Stack – Digital Multi-Angle Gloss Meter with USB and Battery is a handheld, user-friendly device engineered for rapid and precise surface gloss measurement. This device supports one-touch measurement with no buttons needed and offers QC mode for automatic pass/fail results. It features USB data transmission, environmental temperature compensation, and PC software compatibility for generating detailed reports.
Features
- Measures gloss simultaneously at 20°, 60°, and 85° angles
- Wide measuring range: 0 to 2000 GU (20°), 0 to 1000 GU (60°), 0 to 160 GU (85°) High resolution of 1 GU with minimal zero error of 0.1 GU
- Robust repeatability: ±0.2 GU (0–120 GU) or ±0.2% (above 120 GU); reproducibility: ±0.5 GU / ±0.5%
- Supports QC mode for automatic qualification checking, enhancing efficiency Instant “put-and-measure” operation—no pressing needed, delivers fast results (~0.5 s) USB (Type-C) data transmission and PC software for test report generation Built-in 7 V, 2000 mAh rechargeable lithium battery, with long operational life Dual-language support (English and Simplified Chinese) and temperature compensation for stable readings
- Ergonomic and lightweight for portable use across labs and field environments
Technical Specifications
| Specification | Details |
| Measuring Angles | 20°, 60°, 85° |
| Measuring Aperture | 20°: 0.35 in x 0.35 in (9 mm x 9 mm); 60°: 0.35 in x 0.59 in (9 mm x 15 mm); 85°: 0.20 in x 1.50 in (5 mm x 38 mm) |
| Minimum Test Material Size | 2.24 in x 0.39 in (57 mm x 10 mm) |
| Measuring Range | 20°: 0 to 2000 GU; 60°: 0 to 1000 GU; 85°: 0 to 160 GU |
| Resolution | 0.1 GU |
| Repeatability | 0 to 120 GU: ±0.2 GU; >120 GU: ±0.2% |
| Reproducibility | 0 to 120 GU: ±0.5 GU; >120 GU: ±0.5% |
| Zero Error | 0.1 GU |
| Indication Error | 0 to 120 GU: ±1.5 GU; >120 GU: ±1.5% |
| Power Supply | 3.7 V, 2000 mAh rechargeable lithium battery |
| Display | 240 x 128 dot-matrix screen |
| Language Support | English or Simplified Chinese |
| Data Transmission | USB Type-C |
| Operating Temperature | 50 °F to 113 °F (10 °C to 45 °C), up to 85% RH (no condensation) |
| Storage Temperature | 14 °F to 140 °F (–10 °C to 60 °C), up to 85% RH (no condensation) |
| Product Weight | 10.6 oz (300 g) |
| Product Size (L x W x H) | 5.51 in x 1.89 in x 2.95 in (140 mm x 48 mm x 75 mm) |
