Overview

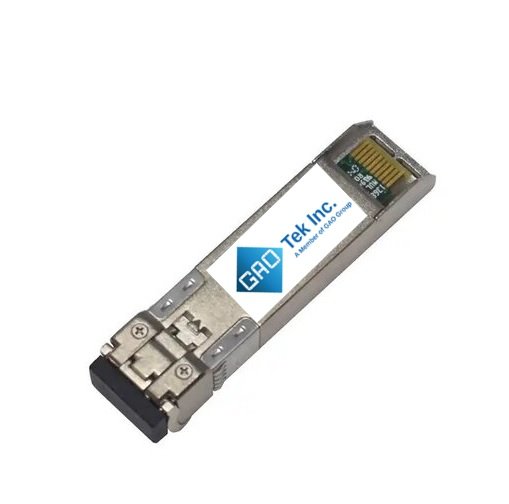

Emissions And Stack 50GHz Full C-band Tunable 11.1Gb/s 50GHz DWDM links up to 80km of G.652 fiber. The SFP+ module applications along with SONET OC-192 LR-2 and Switches, IP Routers or SONET/SDH optical interfaces. Digital Optical Monitoring interfaces are provided via the SFP+ standards-compliant I2C interface.
Features
- Hot-pluggable SFP+ footprint
- 50GHz DWDM ITU-T Full C-band Tunability
- Support 9.95Gb/s to 11.3Gb/s bit rates
- 80 km 50GHz DWDM laser
- 80km APD photodiode receiver
- Single 3.3V power supply
- Power dissipation <1.7W
- Temperature: 23 – 158°F (-5°C~70°C)
- Duplex LC fiber connectors
- 10GBASE-ZR/ZW
- SDH STM-64 ITU-T G.959.1 P1L1-2D2
- Fully digital optical monitoring
- Metal enclosure for lower EMI
- Complies with RoHS directive (2002/95/EC)
- Compliant with SFP+ Electrical MSA SFF
- Compliant with SFP+ Mechanical MSA SFF
- Laser Class 1 IEC/CDRH compliant
Applications
• Full C-band Tunable 10GBASE-ZR 10GEthernet
• 8GB/10GB Fiber Channel
• SONET OC-192 LR-2
• SDH STM-64 ITU-T G.959.1 P1L1-2D2
• Access DWDM Ethernet Switch or IP Router Interconnect
Technical Specification
| Standard | IEEE 802.3ae 10GBASE-ZR |
| Data Rate | 10G |
| Type | DWDM SFP transceiver, Fiber Optic Transceivers |
| Service | OEM/ODM |
| Package | SFP+ |
| Power Dissipation | <1.7W |
| Operating Temperature | 23 – 158°F (-5°C~70°C) |
| Certificate | FCC |
| Distance | 49.7 mi (80km) |
| Weight | 1.1 pounds (0.500kg) |
