Overview

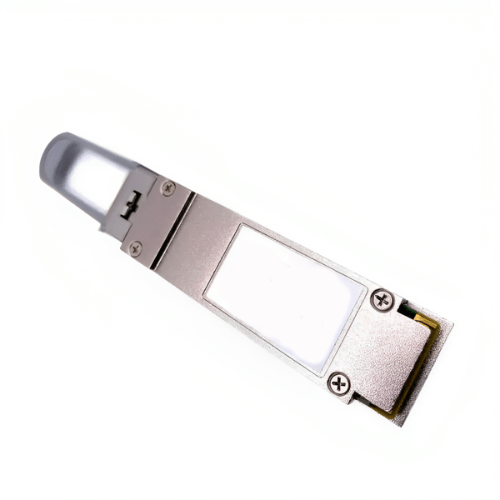

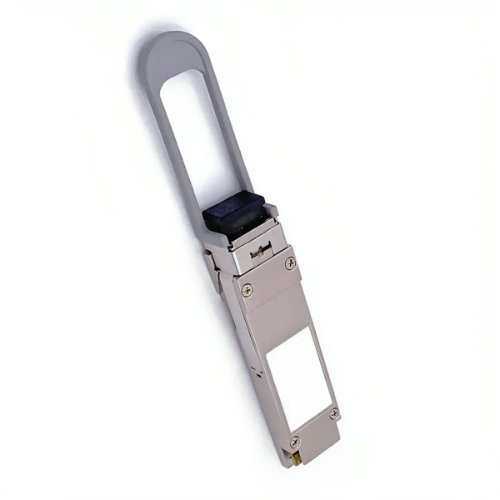

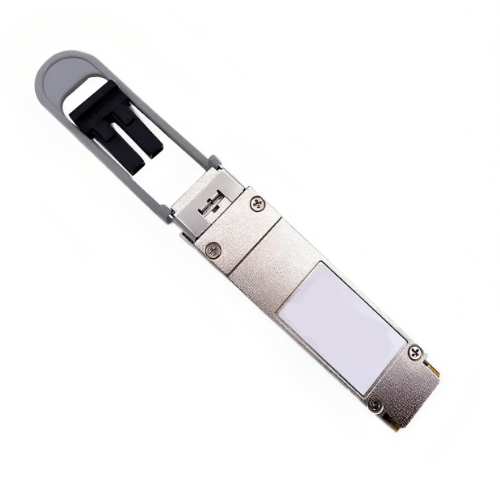

Emissions And Stack BIDI SFP transceiver is a pluggable optical transceiver with a duplex LC connector interface for short-reach data communication and interconnect applications using Multimode Fiber (MMF). It is a compelling solution that enables reuse of their existing 10 gigabit duplex MMF infrastructure for migration to 40 Gigabit Ethernet connectivity. It supports link lengths of 328.08 ft (100 m) and 492.12 ft (150 m) on laser – optimized OM3, and OM4 or OM5 multimode fibres, respectively.
Technical Specifications
| Receive Power (dBm) per lane | 908 dBm to 855 dBm |
| Power Consumption (W) | 3.5 W |
| Cable Distance | 0.043 mi to 0.06 mi (70 m to100 m) |
| Nominal Wavelength (nm) | 832 nm to 918 nm |
| Transmission Distance | 0.062 mi (100 m) |
| Dimensions | 0.53 in x 0.72 in x 2.85 in (13.5 mm x 18.4 mm x 72.4 mm) |
| Operating temperature rang | 50 °F to 158 °F (10 °C to 70 °C) |

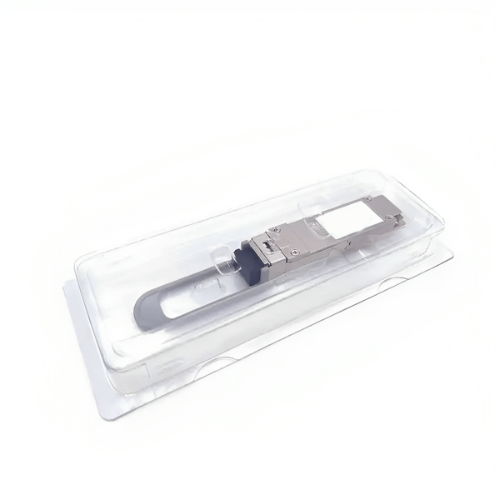

| Single package size | 7.48 in x 3.15 in x 1.57 in (190 mm x 80 mm x 40 mm) |
| Single gross weight | 0.22 lb (2 kg) |
