Overview

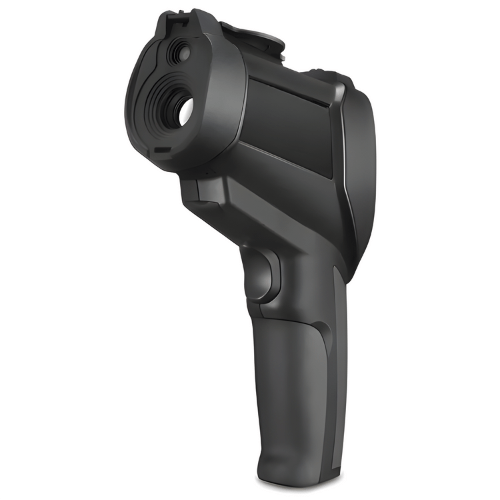

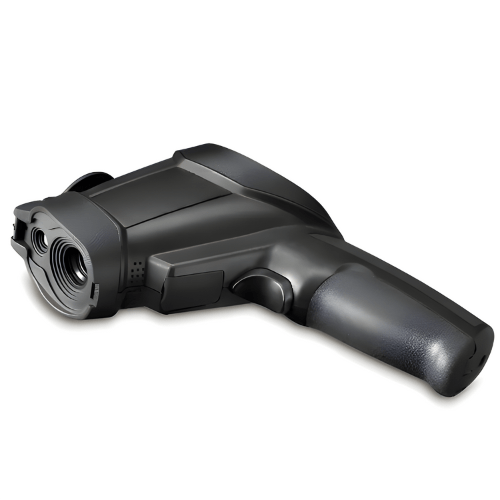

This handheld HD infrared thermal imager has temperature range of – 4 °F to 572 °F, image frequency of 9 Hz, and spectral range of 6.5 μm to 14 μm.
Features
- 2-inch TFT 320×240 Pixels color LCD display
- IR temperature with resolution 32 x 31 pixels
- Image Capture Frequency 9Hz
- SB interface to smartphone or PC
- Hot Spot and Cold Spot Tracking
- Visual Camera & Images Capture (BMP)
Technical Specifications
| Thermal Sensitivity (NETD) | 0.27 °F (0.15 °C) @ 1 Hz and 212 °F (100 °C) |
| Image Frequency | 9 Hz |
| Detector Type | Uncooled hyper-thin pyroelectric ceramic |
| Spectral Range | 6.5 μm to 14 μm |
| IR Resolution | 32 x 31 pixels |
| Display | 2.2-inch TFT 320 x 240 pixels color LCD display |
| Object Temperature Range | -4 °F to +572 °F (-20 °C to 300 °C) |
| Accuracy | ±2% -4 °F to 35.6°F (-2 °C to +2 °C) as tested |
| Spot | Hot spot and cold spot tracking |
| Emissivity Adjustable | 0.10 to 1.0 adjustable |
| Micro SD Memory Card | MAX. support 8GB |
| Field Of View | 38° x 38° |
| Weight | 1.08 lb (494 g) |
| Size | 4.92 in x 2.23 in x 8.07 in (125 mm x 58 mm x 205 mm) |
