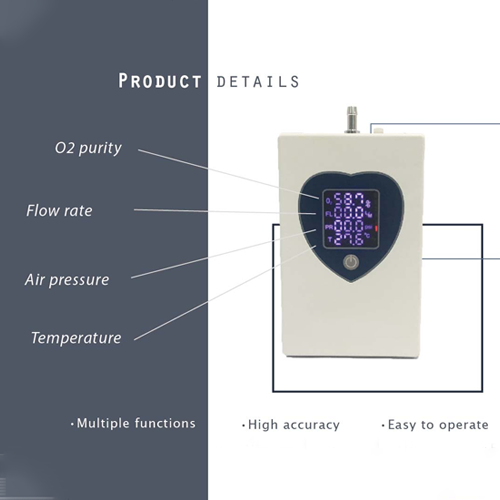

Features
- Multiple functions
- High accuracy
- Easy to operate
Technical Specification
| Response | 0.5 s |
| Oxygen concentration Measurement range | 20 % to 96 % |
| Oxygen concentration Measurement Accuracy | ± 1.8 % |
| Storage Ambient | -4 °F to 185 °F (-20 °C to 85 °C), ≤ 90 % RH |
| Operation Ambient | 32 °F to 104 °F (0 to 40 °C), ≤ 90 % RH |
| Max. measurement pressure | 150 kpa |
| Flow Measurement Accuracy | ± 0.2 LPM or of reading 4 % |
| Flow measurement Resolution | ± 0.01 LPM |
| Flow measurement range | 0 to 10.0 LPMCan be customized according to user requirement 0 to 20.0 LPM, direct measurement bypass |
| Power | 8 to 15 V DC or 12 mA |
| Dimension | 5.5 in x 3.50 in x 1.10 in (142 mm x 89 mm x 28 mm) |
| Weight | 0.43 lb (198 g) |
