Overview

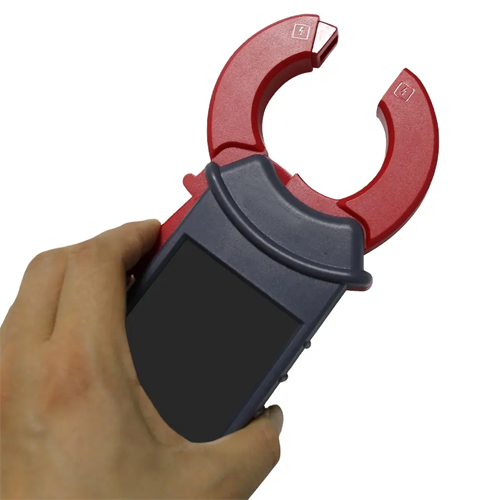

Emissions And Stack pH Power Meter – Accuracy class of 0.1 % or 0.2 % is a single phase handheld electronic meter test, used for testing single phase electricity meters error on site. Wide measurement ranges from 1mA to 120 A and 0 V to 600 V, and can be used to test alternating current parameters – voltage, current, active power, reactive power, apparent power, harmonics, phase angle, power factor, frequency, energy, etc.
Features
- Rotary filed indication
- Vector diagram display
- External thermal-printer
- 4-quadrant measurement
- Display of vector diagram
- Energy meter counters testing
- Testing of energy and power registers
- Testing of 1P2W electricity meter error
- Testing of 1P2W inductive energy meter error
- Testing of 1P2W mechanical energy meter error
- Oscilloscope function displays current and current wave
- Frequency, phase angle and power factor measurement
- Harmonic analysis for voltage and current up to the 63th harmonics
- Power and energy measurement of active, reactive and apparent energy
Technical Specification
| Accuracy class | 0.1 % or 0.2 % |
| Active power measurement accuracy | 0.1 %, 0.2 % |
| Energy measurement accuracy | 0.1 %, 0.2 % |
| Power supply | AAA type, Li rechargeable battery, 2700 mAh, 3.6 V it can work 48 hours continuously |
| Warming-up time | < 2 min |
| Voltage range | 0 V to 600 V |
| Current range | 1 mA to 120 A, 10 mA to 200 A, 60 mA to 600 A |
| Phase measurement | 0 to 359.99 |
| Frequency measurement | 40 Hz to 70 Hz |
| Power factor measurement | -1 to 1 |
| Energy pulse output | 25000 |
| Energy pulse input | 1 to 25000 |
| Communication port | USB & Bluetooth port |
| LCD | 3.5 in (8.89 cm) touch TFT color LCD |
| Dimensions | 8.8 in x 2.4 in x 1.4 in (22.5 cm x 6.1 cm x 3.8 cm) |
| Weight | 17.63 oz (500 g) |
