Overview

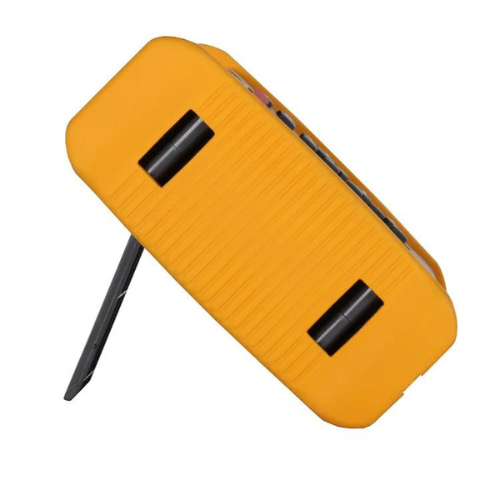

Emissions And Stack OTDR with Optic Power Meter is a multi-functional fiber testing tool. Multiple wavelength combinations and dynamic ranges are available for different optical network tests. Humanized interface and simple operation, it will be a great helper in fiber network testing.
Features
- Multiple dynamic ranges and wavelength combinations can be customized
- Support pass-through 1 x 64 splitters
- With an online light alarm function
- FLM (Fiber Link Map) function, icon display fiber events
- Remote control on PC software is available
- Multi-languages selection
Technical Specifications
| Pulse Width | 3 ns, 5 ns, 10 ns, 20 us |
| Loss Threshold | 50.05 dB |
| Loss Resolution | 0.01 dB |
| Distance Resolution | 0.001 dB |
| IOR Setting | 1.2000 to 1.7000 |
| Distance Accuracy | 3.28 ft or 1 m + test distance x 3 x 10 + sampling resolution (excluding IOR uncertainty) |
| Memory Capacity | 80,000 groups curve |
| VFL Interface | 10 mW, CW or 2 Hz |
| Display | 7 in TFT-LCD (touch screen is optional) |
| Battery | 7.4 V or 4.4 Ah lithium battery (with air traffic certification) |
| Accessories Optional | Power adapter, Charge cord, Lithium battery, FC adapter, USB cable, Quick guide, Test report, CD, carrying bag, Wrist strap, SC or LC adapter, Fiber microscope, Launch cable box |
| Network | Wired LAN, None, GPRS, Wi-Fi, 4 g, GSM, 3G |
| Dead zone | 0.82 ft (0.25 m) |
| Wavelength | 1310 nm, 1550 nm |
| Dynamic Range | 26 dB, 24 dB |
| Built-in Fiber link Measurement | Yes |
| Built-in Laser source | Yes |
| Optical Line Map (FLM or OLM) | Yes |
| Connector Type | SC or ST |
| Battery | Lithium Battery |
| Working Temperature | 14 °F to 122 °F (-10 °C to +50 °C) |
| Storage Temperature | -4 °F to 158 °F (-20 °C to +70 °C) |
| Humidity | 5 % to 95 % (No-condensation) |
| Dimension | 9.96 in x 6.61 in x 2.89 in (253 mm x 168 mm x 73.5 mm) |
| Weight | 3.31 lb (1.5 kg) |
