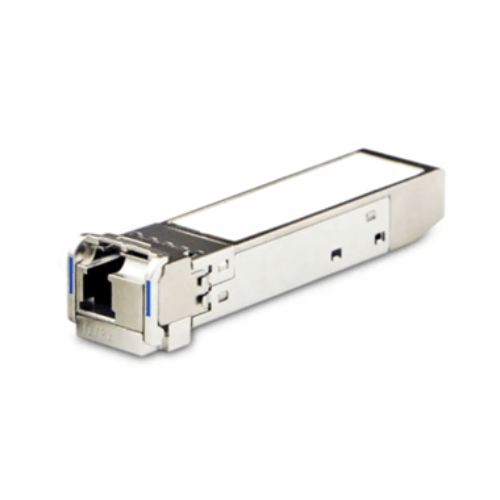

SFP+ BIDI Transceiver, 100 km Range, 11.1 Gbps, 1490-1550 nm - Emissions And Stack

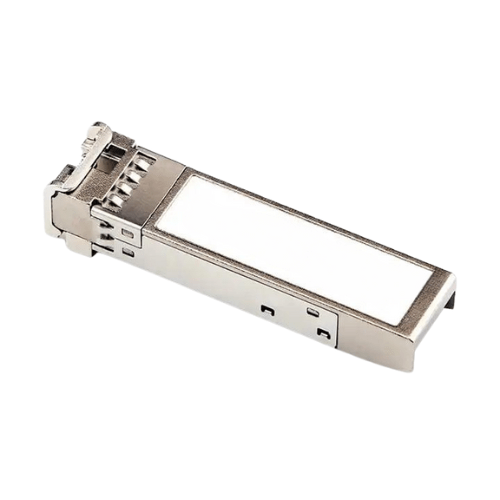

SFP+ BIDI Transceiver, 100 km Range, 11.1 Gbps, 1490-1550 nm - Emissions And Stack - Image 2

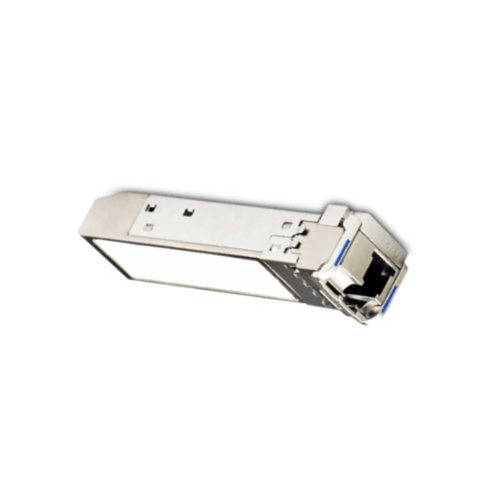

SFP+ BIDI Transceiver, 100 km Range, 11.1 Gbps, 1490-1550 nm - Emissions And Stack - Image 3
SFP+ BIDI Transceiver, 100 km Range, 11.1 Gbps, 1490-1550 nm - Emissions And Stack - Image 4

SFP+ BIDI Transceiver, 100 km Range, 11.1 Gbps, 1490-1550 nm – Emissions And Stack

High-speed SFP+ BIDI transceiver with 11.1 Gbps bit rate, 100 km range, 1490-1550 nm wavelength, and low power dissipation for data center efficiency.

SKU: EMSSPPBT-102 Category:

Features

  • Supports 11.1Gb/ s bit rates
  • Hot-pluggable SFP+ footprint
  • Up to 100 km for SMF transmission
  • 1490 nm EML laser and APD receiver for UTS10Z8B45 1550 nm EML laser and APD receiver for UTS10Z8B54
  • Compliant with SFP+ MSA with single LC receptacle
  • Compatible with RoHS
  • Single 3.3 V power supply
  • Power dissipation <1.8 W
  • 2-wire interface with integrated Digital Diagnostic monitoring
  • EEPROM with Serial ID Functionality
  • Operating case temperature
  • Standard 23 ºF to 158 ºF (-5 ºC to 70 ºC)
  • Industrial -40 ºF to 185 ºF (-40 ºC to 85 ºC)



Technical Specifications

Wavelength 1490 nm to 1550 nm
Connector Type LC
Data Rate 10 G
Distance 62.13 mi (100 KM)
Bit Rate 11.1 Gb/ s
Power Supply 3.3 V
Power Dissipation <1.8 W
Temperature 23 ºF to 158 ºF (-5 ºC to 70 ºC)
-40 ºF to 185 ºF (-40 ºC to 85 ºC)
