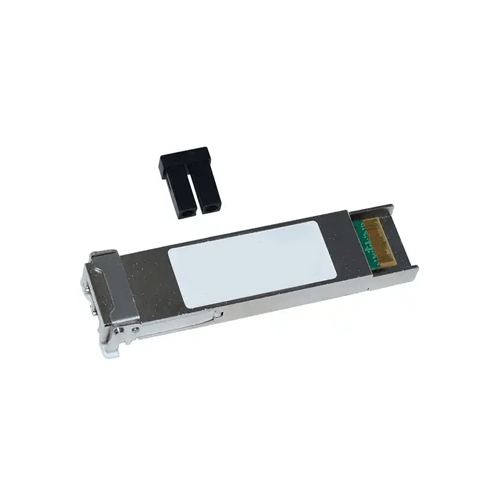

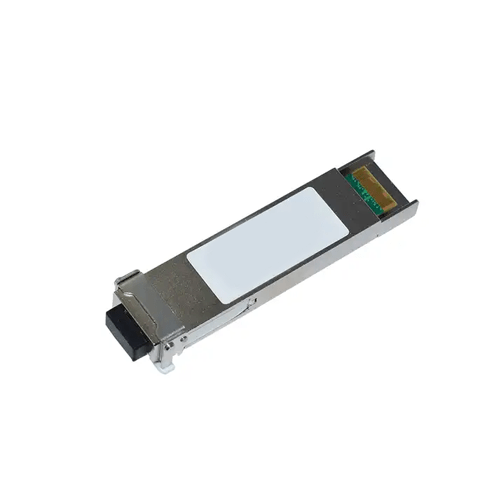

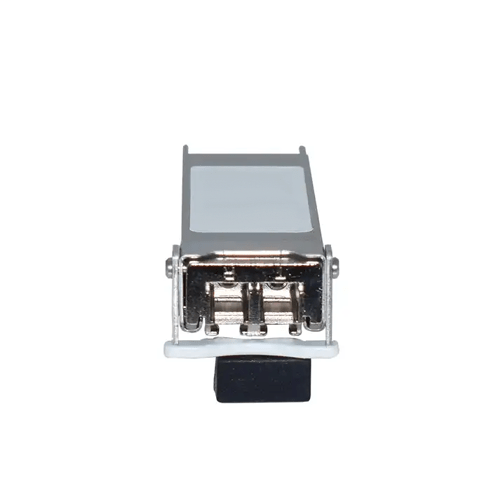

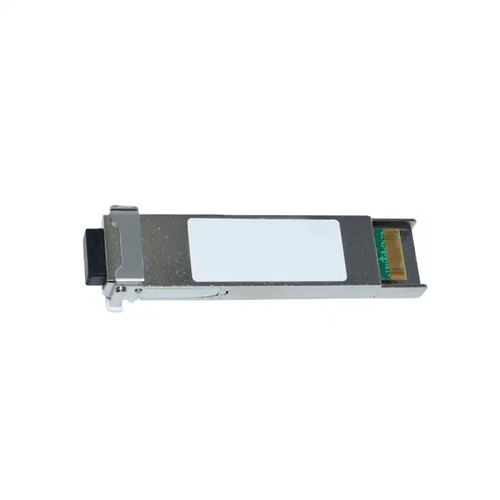

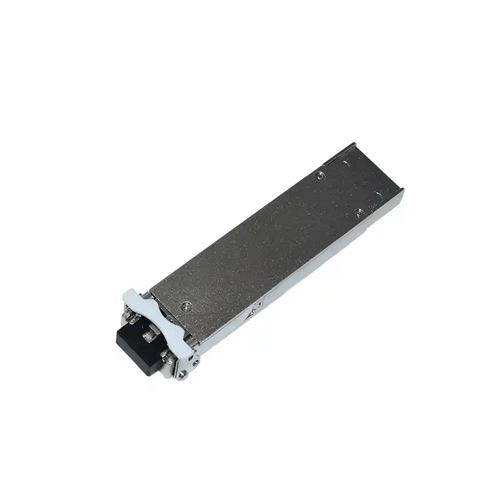

Tunable XFP Transceiver for 10GbE, 49.5 mi Range, Low Power – Emissions And Stack

A 10G Ethernet XFP transceiver supporting up to 80km over single-mode fiber with low power consumption and digital diagnostics.

SKU: EMSXPTU-114 Category:

Features

  • Supports 9.95 Gb/s to 11.3 Gb/s bit rates
  • Duplex LC Connector
  • Hot-pluggable XFP footprint
  • Temperature-stabilized DWDM EML transmitter and APD receiver
  • 100 GHz ITU Grid, C-Band
  • Low power consumption, <3.5 W
  • Digital Diagnostic Monitor Interface



Technical Specifications

Use Ethernet
Data rate 10 Gbps
Transmitter EML
Detector APD
Transmission distance 49.71 mi (80 km)
Connector type Dual LC
Power supply 3.3 V
Operating temperature 32 °F to 158 °F (0 °C to 70 °C)
