Overview

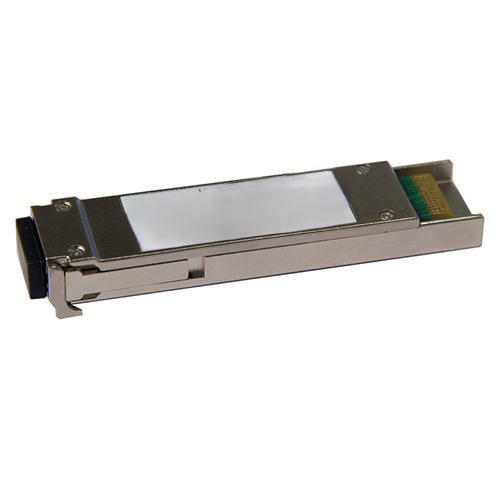

Emissions And Stack’s XFP Optical Transceiver 10G 1550nm ZR 80km Fiber Module is a high-performance device designed for long-distance telecommunication and data center applications. This product supports data rates from 9.95 Gbps to 11.3 Gbps and offers a transmission distance of up to 80 km (49.71 mi) over single-mode fiber. It comes with a duplex LC connector, cooled EML laser transmitter, and is compliant with XFP MSA standards. This device also features hot-pluggable design, a 2-wire interface for management, diagnostic monitoring, and low power dissipation below 3.5 W. With an operating case temperature range from 32 °F to 158 °F (0 °C to 70 °C), this product is an excellent choice for Ethernet, SONET, and SDH optical links.
Features
- Supports multiple protocols from 9.95 Gbps to 11.3 Gbps
- Hot-pluggable 30-pin connector design
- Compliant with XFP MSA standards
- Transmission distance up to 80 km (49.71 mi) over single-mode fiber
- Cooled EML laser transmitter for stable performance
- Duplex LC connector for easy fiber connections
- 2-wire interface for management and diagnostics
- XFI electrical interface with AC coupling
- Operates on +3.3 V power supply
- Low power dissipation of less than 3.5 W
- Operating temperature range of 32 °F to 158 °F (0 °C to 70 °C)
- RoHS compliant
Technical Specifications
| Form Factor | XFP Optical Transceiver |
| Data Rate | 10 Gbps (supports 9.95 to 11.3 Gbps) |
| Wavelength | 1550 nm |
| Transmission Distance | 80 km (49.71 mi) |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Electrical Interface | XFI with AC coupling |
| Power Supply Voltage | +3.3 V |
| Power Dissipation | Less than 3.5 W |
| Operating Temperature | 32 °F to 158 °F (0 °C to 70 °C) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Dimensions | 3.14 in x 0.52 in x 0.33 in (80 mm x 13.2 mm x 8.5 mm) |
| Weight | 0.77 oz (22 g) |
