Overview

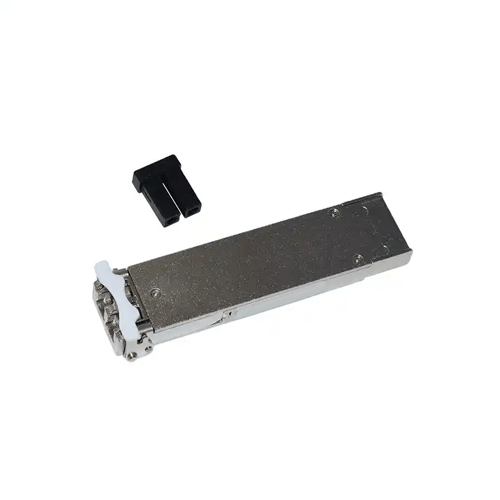

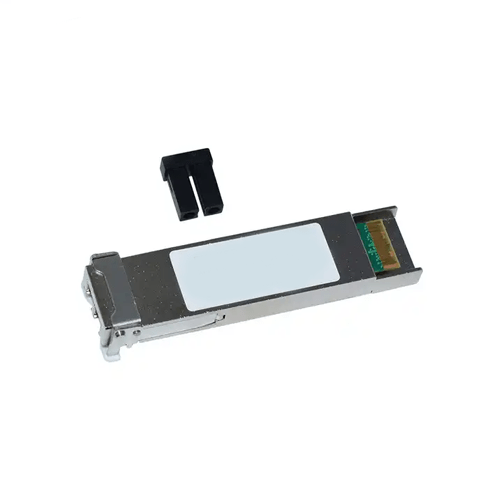

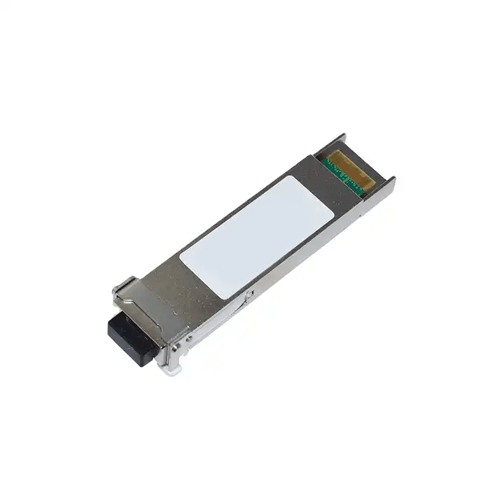

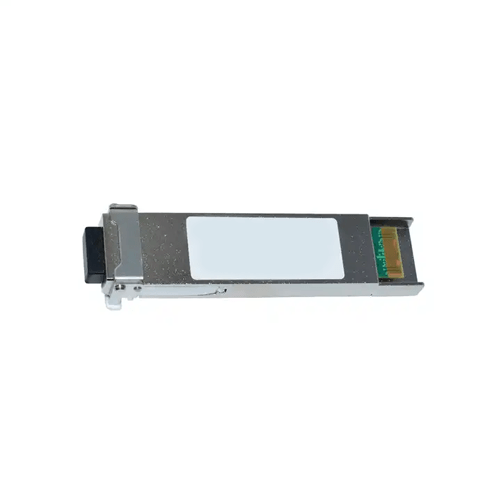

Emissions And Stack XFP tunable full c-band transceiver are designed for use in 10 Gb/s to 11.1 Gb/s 50 GHz DWDM links up to 49.71 mi (80 km) of G.652 fiber. The SFP+ module supports 10 G BASE-ZR and ZW applications along with SONET OC-192 LR-2 and SDH STM-64 ITU-T G.959.1 P1L1-2D2.
Features
- Hot-pluggable XFP footprint
- Multi-Protocol, supports 9.95 Gb/s to 11.3Gb/s bit rates
- Monolithically integrated full C-band tunable transmitter
- 50 GHz ITU channel spacing with the integrated wavelength locker
- C-band-tunable Laser and high-performance APD receiver
- Maximum link length of 49.71 mi (80 km)
- Full Duplex LC connector
- Supports Line-side and XFI loopback
- No Reference Clock required
- Digital diagnostic monitoring support
- Standard bail release mechanism
- Power dissipation <3.5 W
- RoHS compliant and lead-free
Technical Specifications
| Optical Components | C-band tunable DWDM Laser APD |
| Interface | LC |
| Fiber Type | SMF |
| Data Rate | 10 G |
| TX Power | -1 dBm to 3 dBm |
| Receiver Sensitivity | <-24 dBm |
| Compatible | CISCO, HUAWEI, JUNIPER, HILINK |
| Temperature | 32 °F to 158 °F (0 °C to 70 °C) |
