Power & Electrical Measurement

Strengthening Electrical Reliability in Emissions and Stack Measurement Systems

Emissions and Stack delivers electrical testing and power analysis instrumentation designed to support high-reliability environmental measurement installations across industrial sectors.

Core capabilities include:

• Measurement of AC and DC voltage supplying stack analyzers and sampling systems
• Current monitoring to verify proper load distribution across control panels
• Resistance and continuity testing for grounding and bonding validation
• Detection of harmonic distortion affecting sensitive emissions analyzers
• Transient capture for diagnosing voltage spikes or power disturbances
• Signal waveform analysis for control circuit verification
• Insulation resistance testing to reduce electrical leakage risks
• Fault location in DC-powered monitoring circuits
• Verification of power quality supporting continuous environmental reporting systems
• Documentation of electrical performance for maintenance and compliance audits

These capabilities ensure that emissions monitoring hardware operates within stable electrical parameters, reducing measurement uncertainty caused by power-related issues.

Electrical stability significantly impacts the performance of air quality monitoring equipment. Procurement and engineering teams should assess the following technical specifications when selecting supporting electrical measurement tools:

• Voltage measurement range covering low-voltage control circuits and higher industrial supply levels
• Current measurement capacity including true RMS capability for non-linear loads
• Frequency bandwidth for waveform analysis
• Accuracy class and calibration traceability
• Input protection ratings and overvoltage category classification
• Sampling rate for transient detection
• Insulation resistance measurement range
• Environmental operating temperature and humidity tolerance
• Data logging capacity and export functionality
• Safety compliance certifications for industrial use

Selection should align with facility electrical architecture and expected load characteristics of emissions monitoring installations.

Clamp & Ohm Meters

Field-Ready Current and Resistance Diagnostics for Emissions Infrastructure

Clamp meters enable non-intrusive current measurement without disconnecting circuits, supporting rapid verification of load conditions in control cabinets powering stack analyzers. True RMS functionality ensures accurate readings in systems with variable frequency drives or switching power supplies.

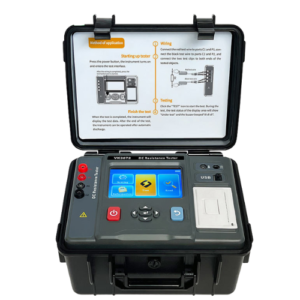

Ohm meters measure resistance and continuity, supporting grounding verification and cable integrity checks. Accurate ground resistance measurement reduces electrical noise that may interfere with sensitive gas analyzers. Rugged housings and high input protection ratings support use near industrial stacks and process equipment. These tools are essential for maintenance technicians responsible for sustaining reliable emissions measurement operations.

Explore Clamp & Ohm Meters



Oscilloscopes & Logic Analyzers

Signal Integrity and Control Circuit Validation for Monitoring Systems

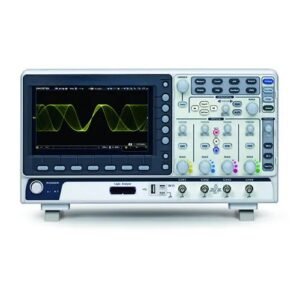

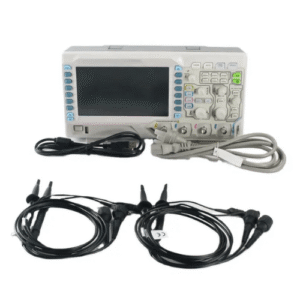

Oscilloscopes provide real-time visualization of voltage waveforms, enabling engineers to diagnose unstable power supplies, switching noise, and communication signal irregularities. High sampling rates capture transient events that may affect data acquisition hardware.

Logic analyzers evaluate digital signal timing and protocol integrity in automated sampling and reporting systems. These instruments are particularly valuable when troubleshooting communication between analyzers and programmable logic controllers. Accurate waveform analysis protects data integrity within advanced emissions and stack measurement architectures.

Explore Oscilloscopes & Logic Analyzers



LCR & Function Generators

Component Characterization and Signal Simulation for Electrical Testing

LCR meters measure inductance, capacitance, and resistance of electrical components used in control boards and signal conditioning modules. Verifying component values supports preventive maintenance and repair of emissions monitoring equipment.

Function generators simulate electrical signals to test sensor inputs and validate control circuit responsiveness. Controlled waveform generation assists engineers during commissioning and troubleshooting phases. Assumption: Facilities maintaining in-house electronics repair capabilities benefit most from these instruments. Accurate component characterization contributes to reliable performance of environmental monitoring systems.

Explore LCR & Function Generators



DC Fault Locators

Precision Identification of Electrical Faults in Monitoring Circuits

DC fault locators identify short circuits, insulation breakdown, and ground faults in direct current systems supplying environmental analyzers and remote sensors.

These instruments inject controlled test signals and analyze return patterns to pinpoint fault locations along cable runs. Rapid fault isolation minimizes downtime in continuous emissions reporting installations. DC fault detection enhances maintenance efficiency in facilities with distributed monitoring networks powered by low-voltage DC systems.

Explore DC Fault Locators



Electrical Test Accessories

Safe and Reliable Connectivity for Industrial Electrical Diagnostics

Electrical test accessories include insulated probes, current clamps, test leads, grounding kits, and calibration adapters. High-quality accessories ensure accurate readings and operator safety.

Properly rated leads and connectors reduce measurement error and mitigate risk when testing live industrial circuits. Accessories designed for harsh environments support safe diagnostics near stack platforms and control rooms. Reliable connection hardware enhances the effectiveness of power and electrical measurement programs supporting emissions infrastructure.

Explore Electrical Test Accessories

Electrical and power diagnostic tools support numerous operational and regulatory scenarios:

• Verifying stable power supply to continuous emissions monitoring systems
• Diagnosing voltage fluctuations affecting stack analyzer accuracy
• Inspecting grounding systems for environmental measurement installations
• Capturing transient electrical events impacting reporting hardware
• Validating control circuit integrity in automated sampling systems
• Supporting preventive maintenance in industrial air quality monitoring networks
• Troubleshooting DC power distribution for remote environmental sensors
• Ensuring electrical compliance documentation for regulatory inspections
• Assessing harmonic distortion in facilities with heavy electrical loads
• Commissioning new emissions monitoring control panels

Applicable standards and regulatory frameworks include:

• EPA 40 CFR Part 60
• EPA 40 CFR Part 75
• Clean Air Act
• CSA C22.2
• UL 61010
• NFPA 70 National Electrical Code
• IEEE Power Quality Standards
• ANSI Instrumentation Standards
• ISO 9001



Instrument Type	Primary Diagnostic Focus	Measurement Scope	Portability	Data Logging	Typical Use Case
Clamp & Ohm Meters	Current and resistance	AC and DC circuits	High	Limited	Field maintenance
Oscilloscopes	Waveform and transient analysis	Analog and digital	Bench or portable	Yes	Control system diagnostics
Logic Analyzers	Digital signal timing	Communication circuits	Bench	Yes	Protocol troubleshooting
LCR Meters	Component characterization	Passive components	Bench or portable	Limited	Repair and validation
DC Fault Locators	Cable and ground fault detection	DC distribution systems	Portable	Limited	Cable troubleshooting
Electrical Test Accessories	Safe connectivity support	Complementary tools	Portable	No	Measurement support

This structured comparison assists technical decision-makers in aligning instrument capabilities with site-specific requirements.

Electrical measurement instruments used in emissions monitoring environments must withstand demanding industrial conditions.

Operating conditions may include elevated ambient temperatures, vibration from nearby machinery, and exposure to dust or moisture. Instruments should meet appropriate ingress protection ratings and safety category classifications.

Mobility requirements vary between field inspections near stack structures and detailed bench analysis in maintenance workshops. Battery-powered portable units provide flexibility for remote diagnostics, while AC-powered bench instruments support in-depth signal analysis.

Power needs should match facility standards, with proper grounding and surge protection during testing. Data handling considerations include internal memory storage and export to secure maintenance databases for compliance documentation.

Emissions and Stack has quickly established itself as a trusted leader in delivering advanced emissions and stack testers and measurement solutions. Growing B2B engagement across North America demonstrates our focus on innovation, product reliability, and customer-centered technical support. Through research, disciplined quality assurance, and expert guidance, we help industrial organizations strengthen electrical reliability within their environmental monitoring ecosystems.

• Improved analyzer uptime through stable electrical supply verification
• Reduced measurement variability caused by voltage or grounding issues
• Faster fault identification in power distribution networks
• Enhanced compliance confidence through documented electrical performance
• Better integration between monitoring hardware and facility electrical systems
• Increased safety during maintenance of energized equipment
• Scalable diagnostic capabilities supporting facility expansion

Why is power quality important for emissions monitoring systems?

Unstable voltage or harmonic distortion can affect analyzer accuracy and disrupt continuous environmental reporting.

What is true RMS measurement and why does it matter?

True RMS measurement provides accurate readings for non-linear electrical loads commonly found in industrial facilities.

When should an oscilloscope be used instead of a multimeter?

Oscilloscopes are required when analyzing waveform shape, transient events, or high-frequency noise not visible with standard meters.

How often should grounding systems be tested?

Testing frequency depends on facility policies and regulatory requirements. Annual verification is common practice.

Are portable instruments suitable for high-voltage environments?

Selection must consider measurement category ratings and input protection specifications appropriate for the intended environment.

Can electrical measurement data support compliance audits?

Documented voltage, current, and grounding verification records can demonstrate proper operation of environmental monitoring equipment.

What factors influence instrument accuracy?

Calibration status, environmental conditions, and proper probe selection affect measurement reliability.



For detailed product inquiries, technical consultation, or support regarding emissions and stack testers and measurement solutions, reach out to Emissions and Stack through our Contact Us page. Our team of experts is ready to provide guidance tailored to your operational requirements, helping you maximize measurement accuracy and process efficiency.
