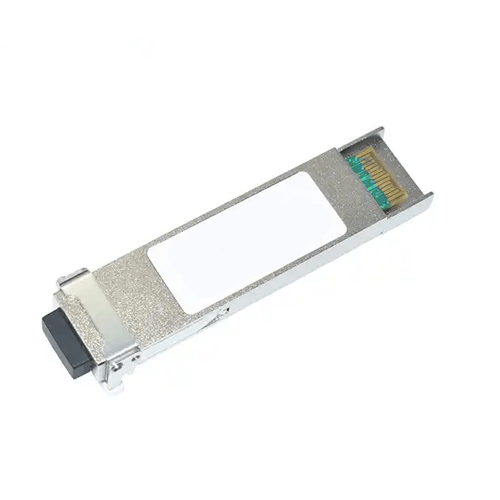

10G CWDM Dual Fiber Transceiver, 24.85 mi Range, DDM - Emissions And Stack

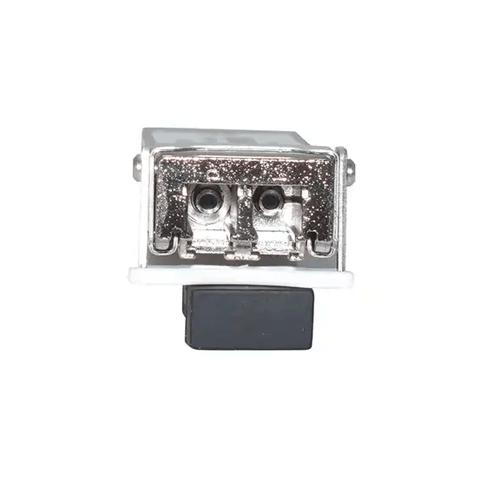

10G CWDM Dual Fiber Transceiver, 24.85 mi Range, DDM - Emissions And Stack - Image 2

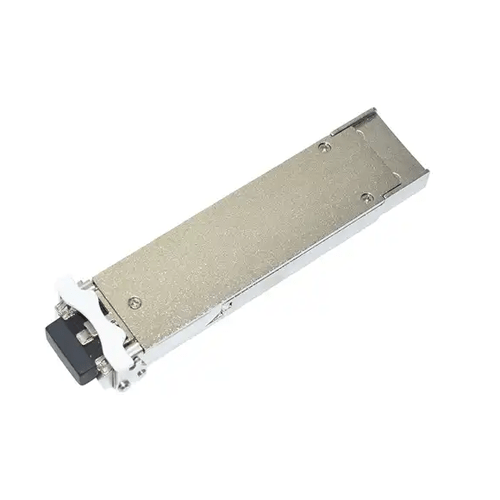

10G CWDM Dual Fiber Transceiver, 24.85 mi Range, DDM - Emissions And Stack - Image 3

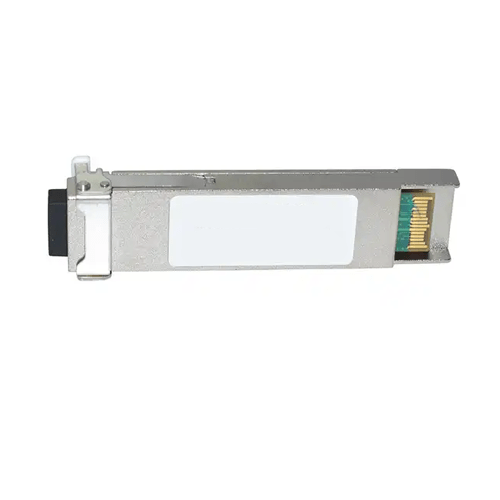

10G CWDM Dual Fiber Transceiver, 24.85 mi Range, DDM - Emissions And Stack - Image 4

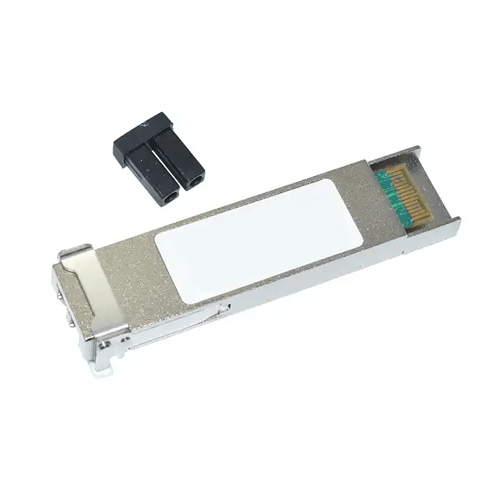

10G CWDM Dual Fiber Transceiver, 24.85 mi Range, DDM - Emissions And Stack - Image 5

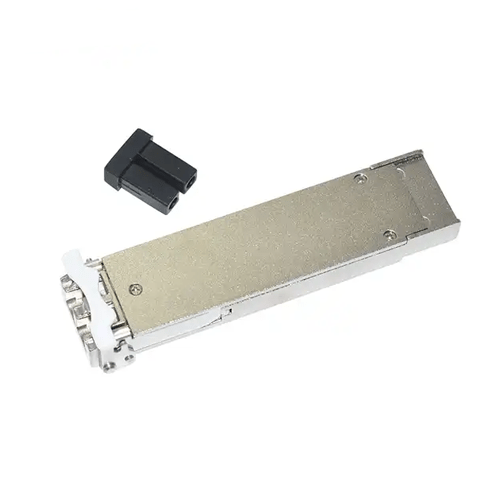

10G CWDM Dual Fiber Transceiver, 24.85 mi Range, DDM - Emissions And Stack - Image 6

10G CWDM Dual Fiber Transceiver, 24.85 mi Range, DDM – Emissions And Stack

High-speed 10 Gbps CWDM dual fiber transceiver with 24.85 mi range, featuring digital diagnostics and hot-pluggable design for easy integration.

SKU: EMSXCWDM-105 Category:

Overview

Emissions And Stack XFP CWDM dual fiber transceiver is designed for 10 G Ethernet per 802.3 ae, and it can support data-rate from 9.95Gb/s to 11.1Gb/s. Digital diagnostics are available via I2C interface as specified in the XFP MSA.



Features

  • Hot Pluggable XFP
  • 1270 nm to 1390 nm CWDM DFB Transmitter and APD Receiver
  • Distance up to 24.85 mi
  • Duplex LC connector
  • Digital Diagnostic, Optical Monitoring
  • Operating temperature 32 ℉ to 158 ℉ (0 ℃ to 70 ℃)



Technical Specifications

Data Rate 10 G
Power Dissipation <1.2W
Dispersion tolerance 800 ps/nm
Wavelength 1330 nm
Reach 24.85 mi (40 km)
Connector LC Duplex
DDM Yes
Temperature 32 ℉ to 158 ℉ (0 ℃ to 70 ℃)
