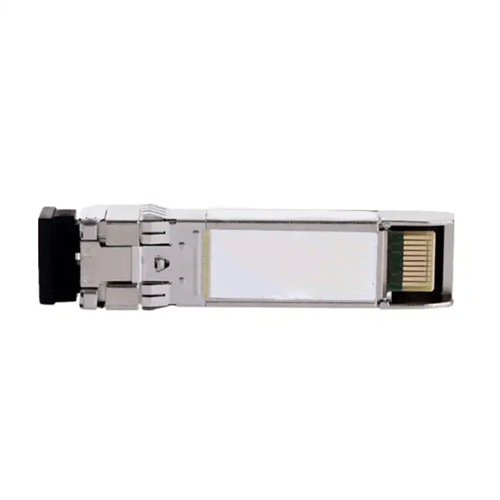

High-Speed 10Gbps Base XFP Transceiver for 300m on 50μm MMF - Emissions And Stack

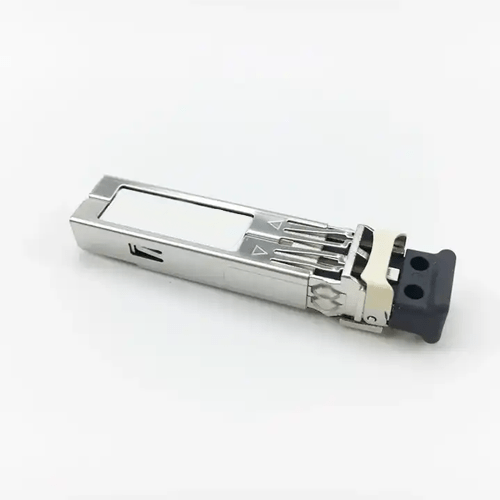

High-Speed 10Gbps Base XFP Transceiver for 300m on 50μm MMF - Emissions And Stack - Image 2

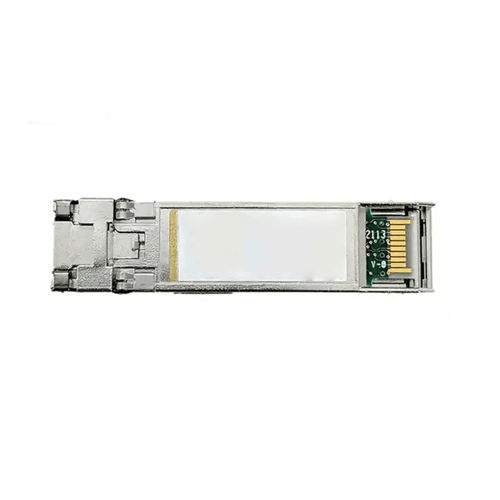

High-Speed 10Gbps Base XFP Transceiver for 300m on 50μm MMF - Emissions And Stack - Image 3

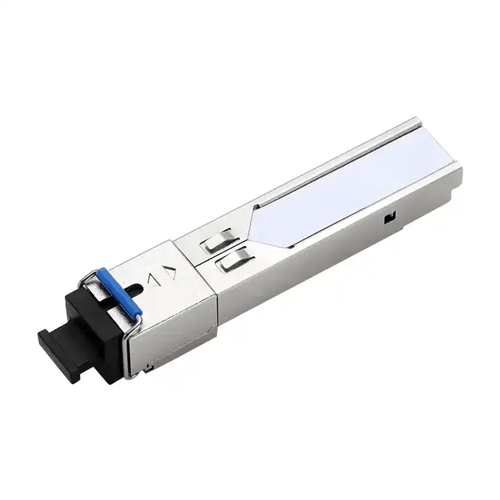

High-Speed 10Gbps Base XFP Transceiver for 300m on 50μm MMF - Emissions And Stack - Image 4

High-Speed 10Gbps Base XFP Transceiver for 300m on 50μm MMF – Emissions And Stack

Achieve reliable 10 Gbps connectivity over 300 m with this compact XFP transceiver, designed for efficient heat dissipation and high performance.

SKU: EMSXBT-165 Category:

Overview

Emissions And Stack base XFP transceiver is compliant with the 10 G small form-factor pluggable multi-source agreement, supporting data-rate of 10.3125 Gbps or 9.953 Gbps, and transmission distance up to 300 m on 50 μm MMF. The transceiver module comprises a transmitter with 850 nm vertical cavity surface emitting laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range of 32 ºF to 158 ºF (0 ℃ to 70 ℃) and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.



Technical Specifications

Data Rate 10 Gbps
Distance 300 m
Wavelength 850 nm
Connector Duplex LC
Tx Power -6 dBm to 1 dBm
Receiver Sensitivity <-11 dbm
Max Cable distance 40 km
Temperature 32 ºF to 158 ºF (0 ºC to 70 ºC)
