Optical Fault Locators

OTDRs, Power Meters, and Visual Fault Locators for Optical Network Diagnostics

Fiber and network testing instruments are designed to evaluate optical link integrity, measure signal loss, and detect faults along fiber optic networks. These systems employ various technologies to provide comprehensive analysis.

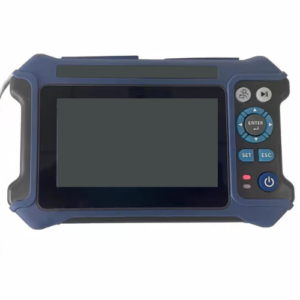

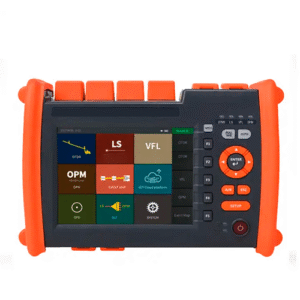

Optical Time-Domain Reflectometers (OTDRs)

OTDRs transmit laser pulses through fiber strands to measure backscatter reflections, accurately locating breaks, bends, and splice losses. Trace analysis allows characterization of fiber length, attenuation, and overall link quality.

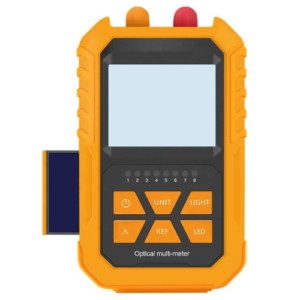

Optical Power Meters and Light Sources

Power meters quantify optical signal strength, while calibrated light sources enable insertion loss measurement for verifying fiber continuity and connector performance.

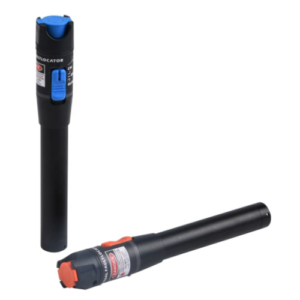

Visual Fault Locators

Visual fault locators emit visible red light to identify breaks, sharp bends, or macrobends in optical fibers, providing rapid, non-intrusive troubleshooting for network technicians.

Integrated Analysis Modules

Advanced instruments combine OTDR, power measurement, and visual fault detection in portable platforms, enabling field engineers to perform comprehensive fiber network testing with high accuracy and repeatability.

Emissions and Stack ensures these instruments provide precise diagnostics, robust construction, and seamless field deployment for telecom, enterprise, and industrial networks.

High-Precision, Field-Ready Platforms for Optical Network Diagnostics

Fiber and network testing systems are equipped with features to support flexible, accurate, and repeatable network analysis.

OTDR Capabilities

• Configurable wavelength selection for single-mode and multi-mode fiber analysis
• Adjustable pulse width and averaging for improved resolution on long or short fibers
• Automatic event detection and characterization for splice, bend, or break identification

Power Meter and Light Source Features

• High-accuracy optical power measurement with selectable units and dB reference
• Stabilized laser sources for consistent insertion loss evaluation
• Multi-fiber testing capability for high-volume network verification

Visual Fault Locator Advantages

• High-visibility red light for easy identification of fiber faults
• Portable, handheld design for rapid field troubleshooting
• Non-intrusive inspection compatible with live or deactivated networks

Data Acquisition and Reporting

• Real-time trace analysis, data logging, and storage
• Integration with network management systems for performance tracking
• Exportable reports for compliance and service verification

These advanced configurations allow engineers to validate network performance, rapidly locate faults, and optimize fiber deployment and maintenance workflows.

Fiber and network testing solutions are essential for reliable network deployment, maintenance, and performance assurance:

• OTDR-based evaluation of telecom backbone networks to detect breaks, bends, and splice losses
• Verification of data center fiber links for high-speed, low-latency connectivity performance
• Troubleshooting industrial automation networks to identify fiber faults and signal degradation
• Inspection of FTTH (fiber-to-the-home) installations to ensure proper signal transmission
• Verification of optical links in high-reliability aerospace and defense communication systems
• Rapid identification of macrobends and microbends during field fiber deployment
• Power meter testing of single-mode and multi-mode fibers for network commissioning
• Optical link certification for enterprise LAN/WAN and campus networks
• Fault location and continuity testing in metro and regional telecommunications networks
• Maintenance of critical utility networks, including smart grid fiber communication
• Pre-installation testing of fiber cabling in commercial and industrial buildings
• Quality assurance of splices and connectors during network expansion projects
• Network performance validation and troubleshooting in high-density data center racks
• Optical fiber loss evaluation to ensure compliance with service-level agreements
• Field validation of redundant fiber paths in mission-critical communication networks

These applications demonstrate the critical role of fiber and network testing instruments in ensuring network reliability, minimizing downtime, and supporting operational compliance.

Fiber and network testing instruments adhere to the following standards:

• TIA/EIA-568, TIA/EIA-598 for fiber optic cabling and color coding
• ISO/IEC 11801 for structured cabling performance
• IEEE 802.3 for Ethernet optical link verification
• ANSI/TIA-455 series for optical fiber testing and measurement
• Telcordia GR-326 for connector and splice qualification
• CSA C22.2 electrical safety standards for testing equipment
• UL certification for industrial and laboratory instruments
• Canadian Electrical Code (CEC) compliance for testing devices
• OSHA safety standards for field fiber optic work

Compliance with these standards ensures accurate, reliable, and regulatory-aligned fiber and network testing.

Rugged, Precise, and Field-Optimized Fiber Network Testing Systems

Emissions and Stack delivers fiber and network testing instruments designed to combine laboratory-grade precision with field durability.

Superior Accuracy and Sensitivity

• OTDR systems with low dead zone and high dynamic range
• Power meters with high-resolution detection and low noise floor
• Visual fault locators with clear indication of macrobends and breaks

Traceable Calibration and Quality Assurance

• NIST-traceable calibration protocols
• Automated verification routines for repeatable, audit-ready measurements

Modular, Portable, and Flexible Design

• Combined OTDR, power meter, and fault locator modules in handheld units
• Interchangeable connectors and adapters for multi-vendor network compatibility

Durable Industrial Construction

• Rugged housing for outdoor, plant-floor, and field environments
• Shock- and dust-resistant design for harsh network deployment sites

Data Integration and Technical Support

• SCADA, DCS, and network management system compatibility
• Expert guidance on trace interpretation, test planning, and deployment strategies
• Remote diagnostics and predictive maintenance support

These engineering differentiators allow rapid fault detection, high measurement confidence, and optimized network performance in telecom, enterprise, and industrial environments.

For detailed product inquiries, technical consultation, or support regarding emissions and stack testers and measurement solutions, reach out to Emissions and Stack through our Contact Us page. Our team of experts is ready to provide guidance tailored to your operational requirements, helping you maximize measurement accuracy and process efficiency.
