Features

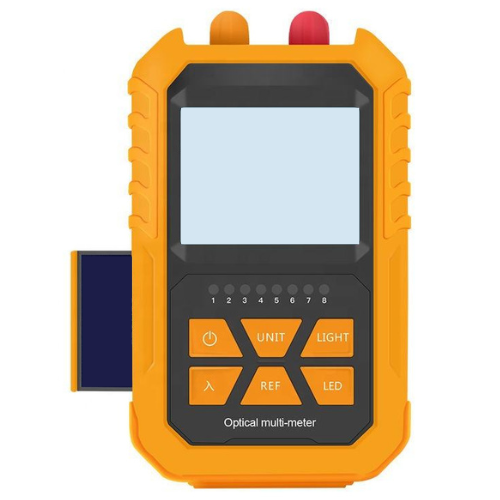

- 4-in-1 multifunction fiber optic tester for efficient network troubleshooting
- Measures optical power in single-mode fiber with high accuracy
- Integrated 15mW visual fault locator (VFL) for detecting fiber breaks and bends
- Supports SC, FC, and ST connector types for versatile testing
- Wide wavelength range of 800~1700nm for comprehensive fiber inspection
- Network cable testing capability included for quick diagnostics
- Li-battery powered with DC +5V/1A charging support
- Compact and portable design, ideal for field testing and maintenance
Technical Specifications
| Type | Fiber optic power meter |
| Application | Test equipment |
| Color | Orange |
| Fiber Type | Single fiber single mode |
| Wavelength | 800 to 1700nm |
| Power Measurement Range | -70 to +10 dBm / -50 to +26 dBm |
| VFL Power | 15mW |
| Connector Type | SC, FC, ST |
| Power Supply | DC +5V/1A Output |
| Battery | Li-battery |
| Operating Temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Weight | 0.55 lb (0.25 kg) |
| Size / Dimension | 6.89 in * 2.36 in * 1.18 in (175 mm * 60 mm * 30 mm) |
