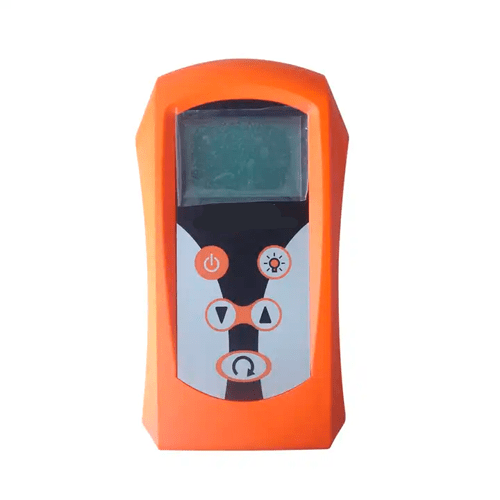

Emissions And Stack Underground Cable Visual Fault Locator

The visual fault locator with 0.9% accuracy operates from -4°F to 140°F and features a 120 Ω output impedance, perfect for underground cable testing.

SKU: EMSVFL-207 Category:

Technical Specification

Accuracy 0.9%
Resolution 1%
Output 5 V
Velocity Factor 0.01 to 0.99
Output Impedance 120 Ω
LCD Display 128 x 64 graphic LCD
Display View Area 1.73 in x 2.44 in (44 mm x 62 mm)
Power Supply 6 AA
Battery Low Indication 6.5 V
Humidity 93%
Operating Temperature -4 ℉ to 140 ℉ ( -20 ℃ to 60 ℃)
Storage Temperature -22 ℉ to 158 ℉ ( -30 ℃ to 70 ℃)
Dimension 8.26 in x 3.93 in x 1.96 in (210 mm x 100 mm x 50 mm)
Weight 1.21 lb (550 g)
