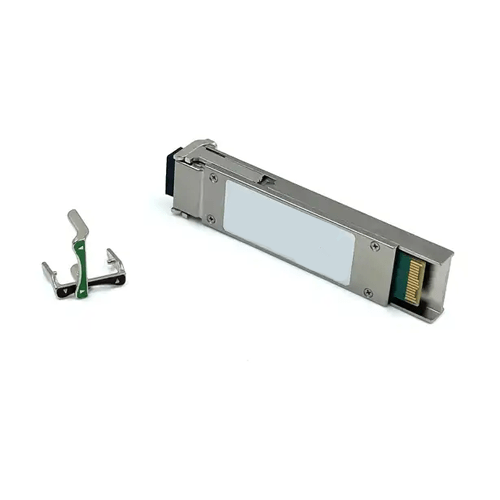

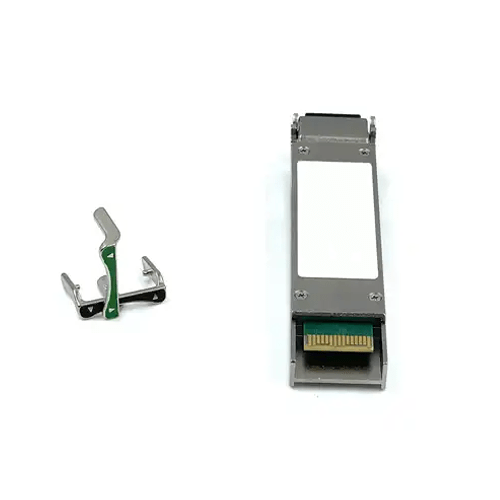

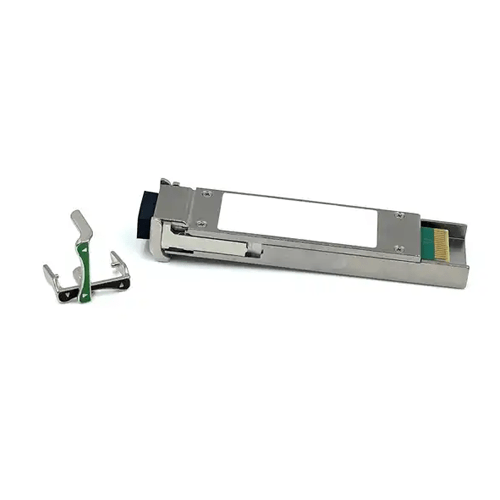

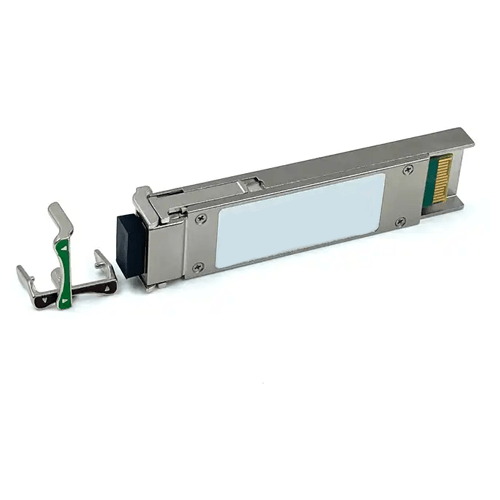

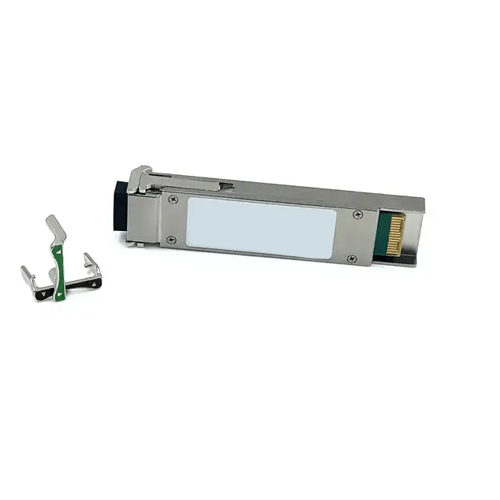

10G CWDM XFP Transceiver, Max 11.3 Gbps Rate, RoHS - Emissions And Stack
10G CWDM XFP Transceiver, Max 11.3 Gbps Rate, RoHS - Emissions And Stack - Image 2
10G CWDM XFP Transceiver, Max 11.3 Gbps Rate, RoHS - Emissions And Stack - Image 3
10G CWDM XFP Transceiver, Max 11.3 Gbps Rate, RoHS - Emissions And Stack - Image 4
10G CWDM XFP Transceiver, Max 11.3 Gbps Rate, RoHS - Emissions And Stack - Image 5
10G CWDM XFP Transceiver, Max 11.3 Gbps Rate, RoHS - Emissions And Stack - Image 6

10G CWDM XFP Transceiver, Max 11.3 Gbps Rate, RoHS – Emissions And Stack

High-speed 10 Gbps CWDM XFP transceiver with max 11.3 Gbps rate and low power dissipation, ideal for reliable wired LAN connections.

SKU: EMSXCWDM-104 Category:

Features

  • Supports 9.95 Gbps to 11.3 Gbps bit rates
  • Cooled CWDM EML and APD receiver
  • Supports Lineside and XFI loopback
  • Full Duplex LC connector
  • Metal enclosure for lower EMI
  • Single 3.3 V power supply
  • Hot-pluggable
  • Power dissipation <3 W
  • Operating temperature range
  • -Commercial 32 ℉ to 158 ℉ (0 ℃ to 70 ℃)
  • -Industrial -40 ℉ to 185 ℉ (-40 ℃ to 85 ℃)
  • RoHS Compliant
  • No Reference Clock required



Technical Specifications

Wavelength 1470 nm
Colors Gray
Power Supply Voltage (Vcc3) -0.3 V to 3.6 V
Power Supply Voltage (Vcc2) -0.3 V to 2.0 V
Signal Input Voltage Vcc -0.3 V to Vcc 0.3 V
Power Supply Voltage 3.13 V to 3.47 V, Typical 3.30 V
Power Supply Current Max 640 mA
Data Rate Typical 10.3 Gbps, Max 11.3 Gbps
Fiber Length 9/125 um core SMF Typical 49.71 mi (80 km)
Supply Voltage – 1.8V supply 1.71 V to 1.89 V
Supply Voltage – 3.3V supply 3.13 V to 3.47 V
Supply Current – 1.8V supply Max 250 mA
Supply Current – 3.3V supply Max 760 mA
Module total power Max 3 W
Transmitter differential input voltage 120 mV to 820 mV
Receiver differential output Voltage 340 mV to 850 mV, Typical 650 mV
LOS Fault Min Vcc -0.5 V VCC Host
Relative Humidity 5% RH to 95% RH
Storage Temperature -40 ℉ to 185 ℉ (-40 ℃ to 85 ℃)
Operating Case Temp.Standard 32 ℉ to 158 ℉ (0 ℃ to 70 ℃)
Operating Case Temp.Industrial -40 ℉ to 185 ℉ (-40 ℃ to 85 ℃)
Weight 1.0 lb (0.5 kg)
