Overview

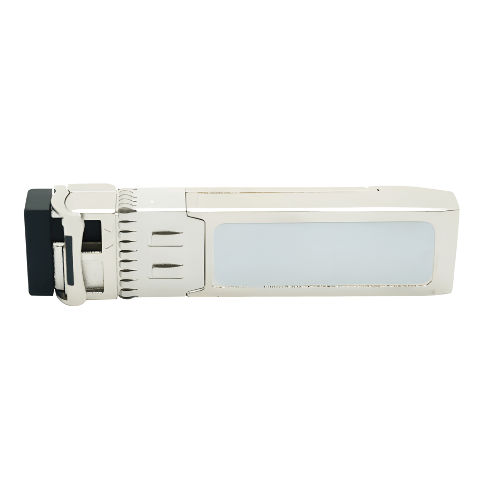

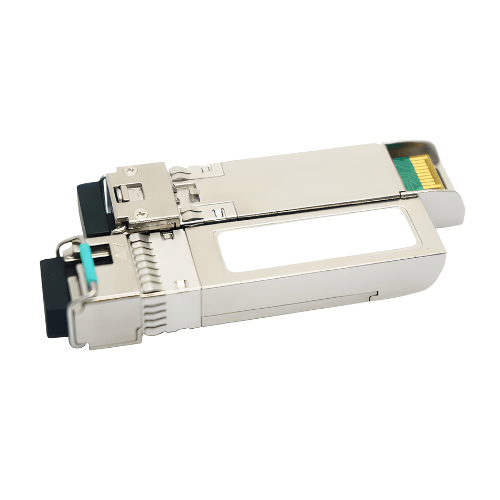

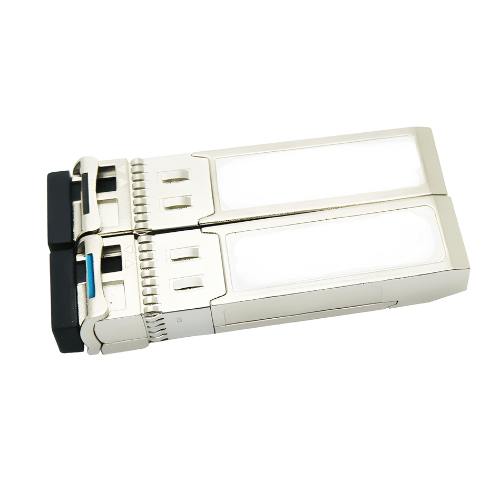

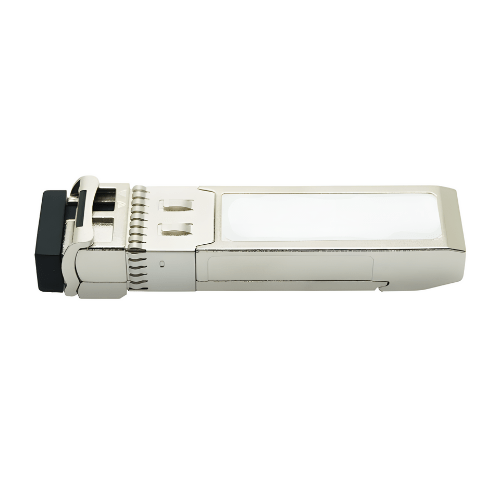

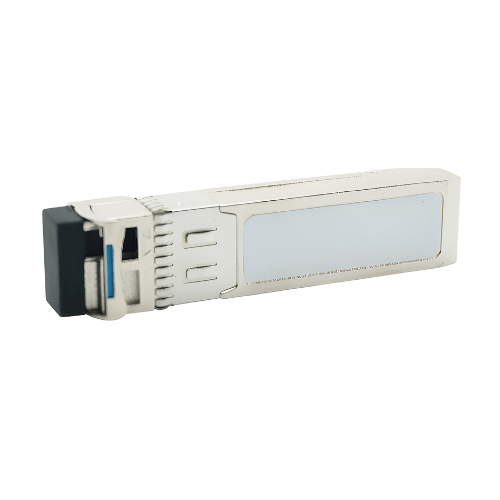

Emissions And Stack single mode SFP+ BIDI transceiver module is a small form factor pluggable module for duplex optical data communications such as 10 GBASE-LR/LW defined by IEEE 802.3 a, e. It is with the SFP+ 20-pin connector to allow hot plug capability. The module is designed for single mode fiber and operates at a nominal wavelength of 1270 nm or 1330 nm. The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Features
- Up to 10.3 Gb/s data rates
- 1 G, 2 G, 4 G, 8 G, 10 G Fiber Channel applications.
- Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
- Single 3.3 V Supply
- Up to 49.71 mi on 9 um, 125 um SMF
- A 1270 nm DFB Laser transmitter, 1330 nm receiver
- B 1330 nm DFB Laser transmitter, 1270 nm receiver
- SFP+ MSA SFF-8431 Compliant
- Digital Diagnostic SFF-8472 Compliant
- RoHS compliant and Lead Free
- Low power consumption of imported chips
- Fast signaling process, stable operation
- Zinc alloy casting with anti-static and reduce signal interference
Technical Specifications
| Data Rate | 10 Gbps |
| Network | 4G |
| Wavelength | 1270 nm, 1330 nm, 1490 nm, 1550 nm |
| Distance | 12.49 mi (20 KM), 24.85 mi (40 KM), 37.28 mi (60 KM), 49.71 mi (80 KM) |
| Output Power | -7 dBm to 6 dBm |
| Sensitivity | -14.4 dBm to -21 dBm |
| OBSAI application rates | 6.144Gb/s, 3.072 Gb/s, 1.536 Gb/s, 0.768 Gb/s |
| CPRI application rates | 6.144Gb/s, 3.072 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s, 0.6144 Gb/s |
| Operating case temperature | Operating 32 ℉ to 158 ℉ (0 ℃ to 70 ℃)Storage -40 ℉ to 185 ℉ (-40 ℃ to 85 ℃) |
