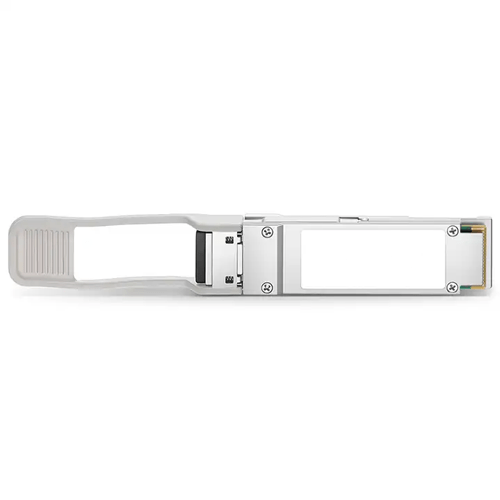

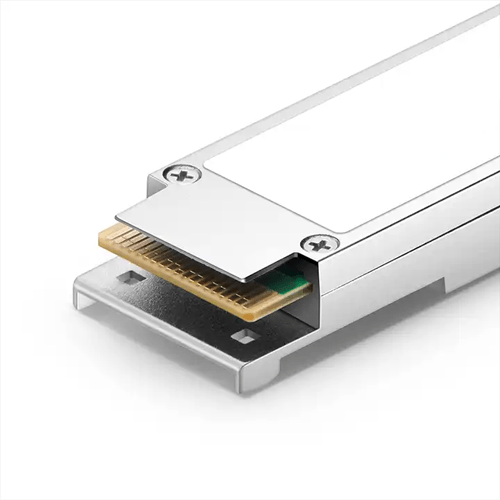

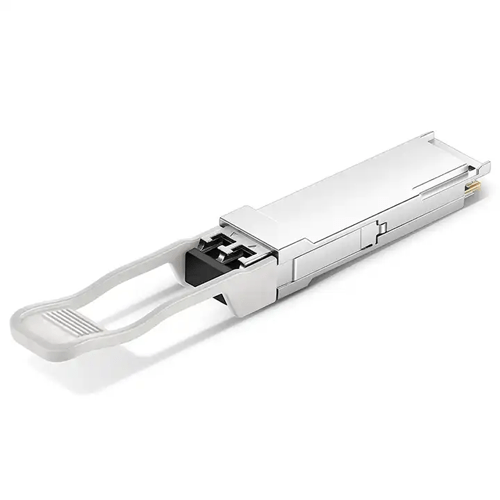

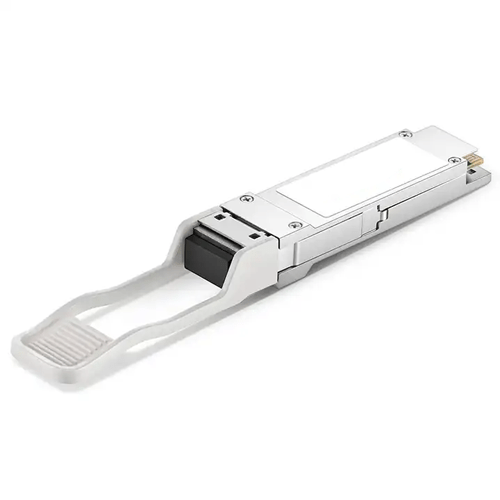

SFP Transceiver, 80 km Range, 41.25 Gbps Speed – Emissions And Stack

High-performance SFP transceiver with 80 km reach and 41.25 Gbps data rate, ideal for efficient, long-distance fiber optic communication.

SKU: EMSXBT-161 Category:

Technical Specifications

Max data rate 40 G
Wavelength 1310 nm
Max Cable Distance 49.71 mi (80 KM)
TX Power 1 dBm to 6 dBm
Receiver Sensitivity <-25 dBm
Receiver Overload -8 dBm
Power Consumption <4.5 W

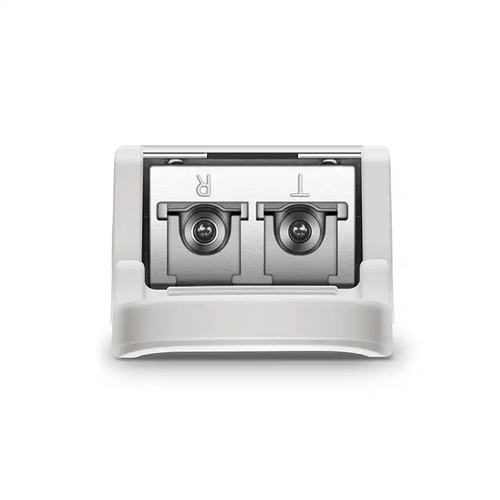

Connector Duplex LC
Temperature 32 ºF to 158 ºF (0 ºC to 70 ºC)
