Overview

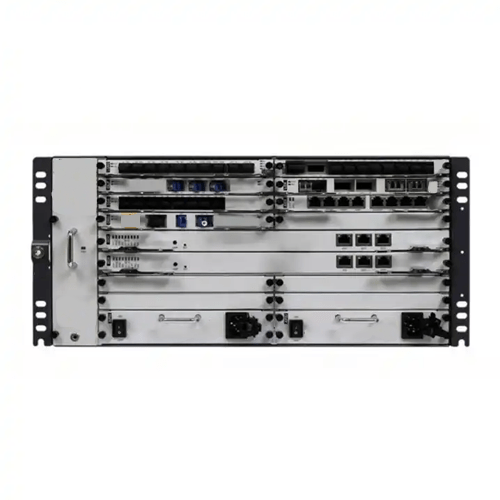

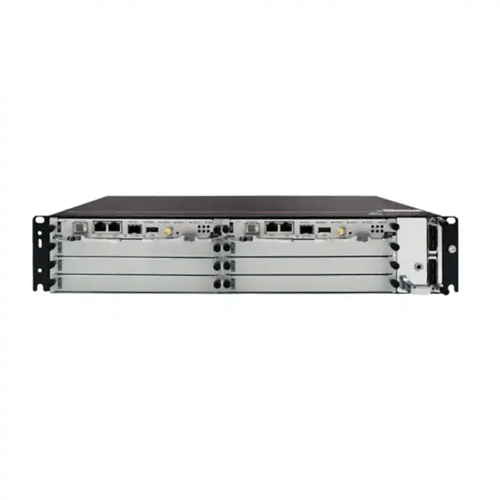

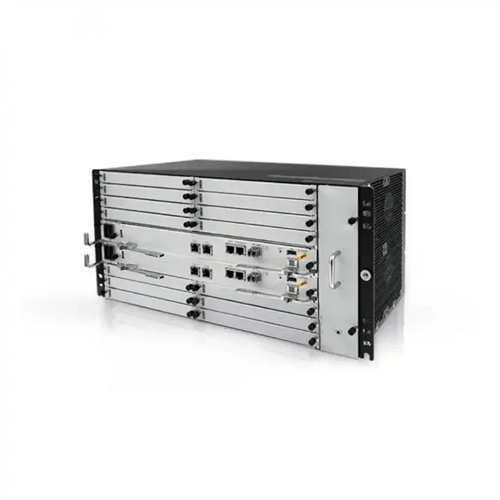

Emissions And Stack optical SFP+ DWDM transceiver transmission supports the smooth evolution to next generation transport technology liquid OTN, Multi-Service Optical Transport Network (MS-OTN) architecture, plus 4-in-1 high integration of PCM, SDH, PKT, OTN. This MS-OTN Platform is an efficient transport solution for industries, in particular the energy, transportation, government, and banking sectors.
Features
- Unified Transmission
- All low-rate, high-bandwidth services encapsulated into OTN frames
- Easy Deployment
- Case-shaped design features high integration at any place
- Intelligent O&M
- Real-time performance visualization
- Big data analysis for network sub-health
- Shifting from passive to proactive O & M
- OD or FD-based optical-layer visualization and online real-time monitoring
Technical Specifications
| Number of Service Board Slots | DC chassis 14, 6, 7
AC chassis 10, 4, 5, 12 |
| Maximum Number of Wavelengths | DWDM 80-ch, CWDM 8-ch |
| Maximum Rate per Channel | 200 Gbit/s, 100 Gbit/s (grey) |
| Power Supply | 110 V AC to 220 V AC, -48 V DC to -60 V DC |
| Installation Mode | 19 in (486.6 mm) cabinet ETSI 11.81 in (300 mm) deep cabinet, such as N 63E, N 63B, and A 63B |
| Number of slots | 7 |
| Dimensions | 8.7 in x 8.82 in x 17.4 in (221 mm x 224 mm x 442 mm)
3.46 in x 8.66 in x 17.4 in (88 mm x 220 mm x 442 mm) |
| Weight | 23.37 lb (10.6 kg), 10.8 lb (4.9 kg) |
