Overview

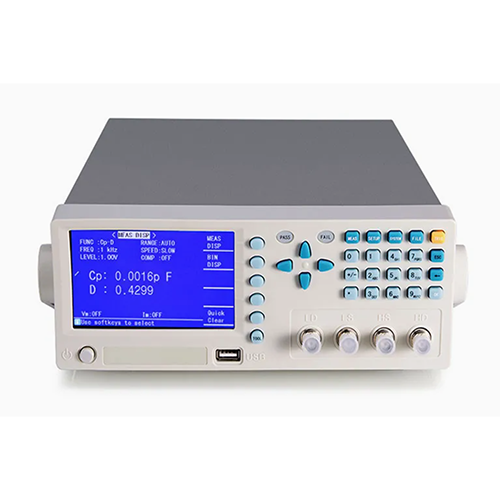

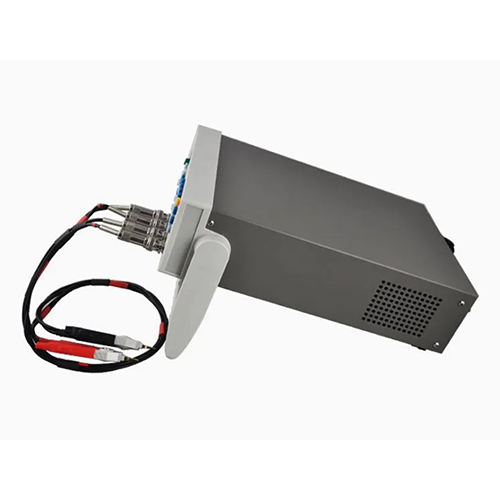

Emissions And Stack’s digital laboratory LCR meter 40Hz to 100kHz delivers accurate, repeatable component measurements for laboratory and production use. It uses a modern 32-bit core processor and a 4.3-inch TFT display to present clear, high-resolution readouts across many frequency points. The instrument supports selectable internal source resistance, multiple AC test levels, and multi-frequency list sweep for flexible testing of inductors, capacitors, resistors and impedance. Built-in 5-grade comparator sorting, open/short/load correction, and USB data logging speed up batch inspections and traceability. Fast measurement modes and adjustable averaging allow technicians to balance speed and stability, while nonvolatile storage and USB export simplify data handling. Compact bench ergonomics and standard connectivity to RS232, Handler, and USB make integration straightforward. This device is ideal for R&D, QA, and manufacturing lines that require consistent, exportable test records.
Features
- Wide test coverage: 40 Hz to 100 kHz with many selectable points
- 3-inch true-colour TFT display with 6-digit resolution for clear readouts
- 32-bit core processor for fast, stable measurements
- Selectable internal source resistance (30 Ω or 100 Ω) and multiple AC levels
- Built-in 5-grade comparator sorting and 10-point list sweep support
- Non-volatile storage plus USB export, screen copy, and data logging
- Fast test modes with adjustable averaging to balance speed and stability
- Standard interfaces for bench or automated setups: RS232, Handler, USB
Technical Specifications
| Test Frequency Range | 40 Hz to 100 kHz (Up to 41 Selectable Frequency Points) |
| Basic Measurement Accuracy | 0.10% to 0.15% Depending On Model And Parameter |
| Measurement Parameters And Ranges | Z, R, X, ESR: 0.1 mΩ to 99.999 MΩ; C: 0.01 pF to 9.9999 F; L: 0.01 µH to 9.9999 H; D: 0.0001 to 9.9999; Q: 0.0001 to 9.9999; θ (deg): -179.99° to 179.99°; θ (rad): -3.1416 to 3.1416; Δ%: -999.99% to 999.99% |
| Test Signal Levels | Standard AC Test Levels: 0.05 Vrms, 0.1 Vrms, 0.2 Vrms, 0.25 Vrms, 0.3 Vrms, 0.4 Vrms, 0.5 Vrms, 1 Vrms |
| Signal Source Internal Resistance | 30 Ω or 100 Ω Selectable |
| Measurement Terminals | Five-Terminal Measurement Configuration |
| Measurement Speed | High Speed Up To 30 Readings Per Second; Medium 10/s; low 3/s; Fastest Modes For Low-Frequency High-Speed Available |
| Averaging | 1 to 255 |
| Delay | Trigger Delay And Step Delay 0 to 6 s, 1 ms Step |
| Range Mode | Auto Or Hold (Manual Selection Supported) |
| Trigger Modes | Internal, Manual, External, Bus |
| Zero Clearing And Calibration | Open, Short, Load Quick Reset And Multi-Frequency Zeroing |
| Comparator / Sorting | 5-Grade Sorting Function (BIN1 to BIN4, NG; Model Dependent) |
| Display Mode And Resolution | 4.3-Inch True-Color TFT LCD, 6-Digit Main Readout |
| Storage | Internal: More Than 100 Instrument Setting Files; External USB: Extendable to 500+ sets, CSV Export Supported |
| Processor | 32-Bit Core Processor |
| Interfaces | RS232 Serial, Handler, USB Host And USB Device, Headphone Jack, Foot Pedal Interface; Optional GPIB And LAN |
| Power Source And Requirements | DC 100 V to 300 V (Model Dependent) Or Dual AC Ranges Where Applicable; Frequency 47.5 Hz to 63 Hz |
| Power Consumption | ≤ 20 VA |
| Operating Environment | 32 °F to 104 °F (0 °C to 40 °C) |
| Humidity | ≤ 90% RH |
| Dimensions (W x H x D) | 10.43 in x 3.94 in x 13.39 in (265 mm x 100 mm x 340 mm) |
| Weight (Product Only) | 7.72 lb (3.5 kg) |
