Technical specification
| Operating Voltage | 28 V |
| Conversion efficiency | ≥ 42 % |
| Controllable output power | 10 W to 100 W |
| ALC power adjustment range | ≥ 30 dB |
| Gain | 50 ± 1.0 dB |
| In-band fluctuation | ≤ 2.5 dB |
| Spurious emission | ≤ -15 dBm or 1 MHz |
| 9 KHz to 1 GHz | No higher than normal noise floor clutter |
| 1 GHz to 12.75 GHz | |
| Maximum allowable input power | ≥ + 10 dBm |
| Input VSWR | ≤ 1.35 |
| Output VSWR | ≤ 1.30 |
| Working ambient temperature | 14 °F to 149 °F (-10 to +65 ℃) |
| Gain Stability | ± 1.5 at -40 °F to 149 °F (-40 ℃ to +65 ℃) |
| Power stability | ± 1 at -40 °F to 149 °F (-40 ℃ to +65 ℃) |
| Power Requirements | ≥ 8 A at 28 V DC； |
| Power supply interface, monitoring interface RS485 | 7 W2 |
| RF output connector | N-F connector |
| LCD liquid crystal display | Display frequency, power, switch status |

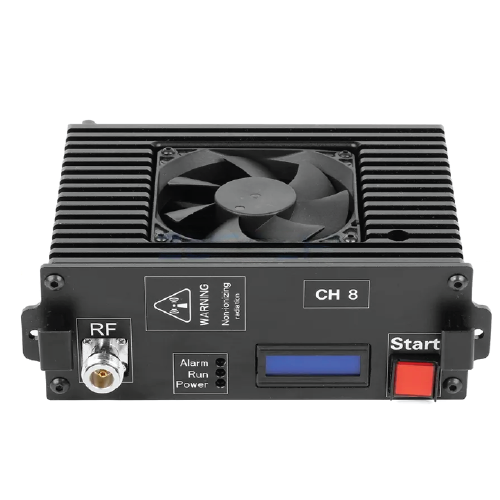

| With 3 LED lights | POWER: Power indication; RUN: Running indication; ALARM: Alarm indication; |
| Built-in cooling fan | Modules can be run separately |

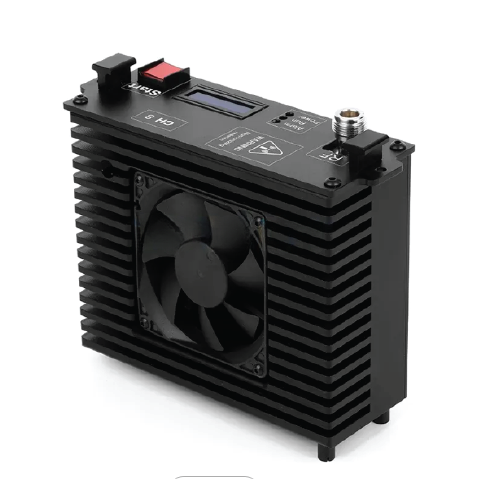

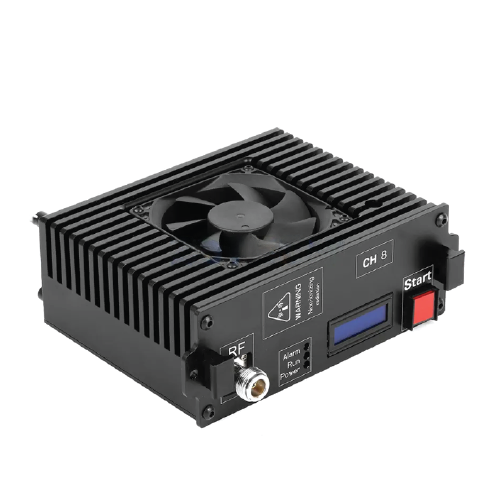

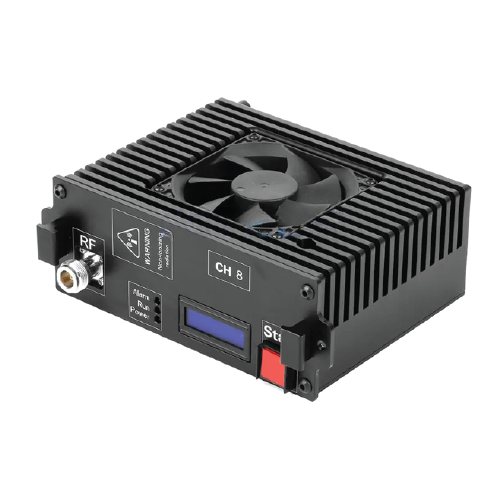

| Appearance (how to use) | Black integrated module with fan (single or portable use) |
| Monitoring | Function Description |
| Amplifier part setting parameters | Turn the amplifier on or off |
| Alarm switch | Enable and disable the alarm function |
| Downlink Power Control | The maximum output power of the power amplifier can be set, the adjustment range is ≥ 20 dB, and the high, medium and low power levels can be set |
| Amplifier over temperature alarm | The high temperature power amplifier shutdown threshold can be set, the power amplifier temperature exceeds 85 degrees, it will automatically shut down; 65 degrees will automatically restore |
| Amplifier overpower alarm | The actual power value is 2 dB higher than the downlink ALC start control threshold and close |
| Power amplifier standing wave alarm | When the standing wave detection of the power amplifier is greater than 4, the power amplifier is automatically turned off |
| Amplifier overcurrent alarm | When the detection current of the power amplifier exceeds 12 A, the power amplifier is automatically turned off |
| Amplifier under-power alarm | When the power amplifier detection power is less than 37 dBm, an under-power alarm is displayed |
| Amplifier overvoltage alarm | When the power amplifier voltage exceeds 32 V, the power amplifier will automatically shut down |
| Amplifier switch status | If the power amplifier is set to “OFF”, the query should be the state of the power amplifier off; otherwise, the state of the power amplifier will be turned on. |
| Downstream output power level value | Detect power amplifier output power value, detection range (Pomax + 2, Pomax – 20) |
| Downward standing wave ratio | The standing wave is normally 1.2, when the load is mismatched, the query value is 4.0 |
| Temperature query | Detect the internal temperature of the module, detection range: -40 °F to 212 °F (-40 ℃ to +100 ℃) |
| ALC value query | The displayed value is equal to the actual set ALC value |
| Voltage detection | Detection module working voltage |
| Current Detection | Detection module operating current |
| Frequency setting mode 1 | Any single frequency point setting within the range |
| Frequency setting mode 2 | Set the broadband frequency sweep mode, parameters such as frequency, interval, and step can be set |
| Frequency setting mode 3 | Set any 4 sub-frequency segments within the bandwidth, and a single sub-segment needs to be incremented |
| Module communication | RS485 |

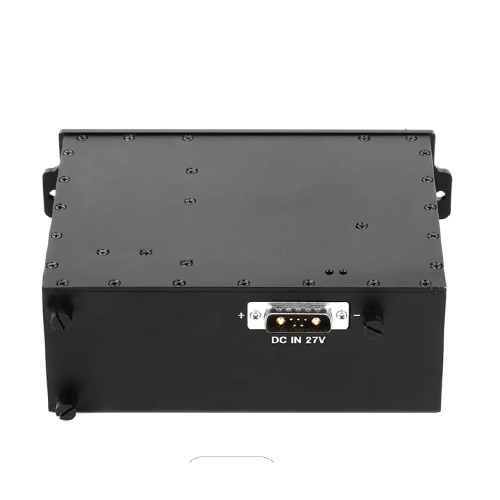

| Interface definition | +: 28 V，-: GND; control bit 1:485 A，2：485 B |
| Physical dimension | 6.10 in x 4.92 in x 2.36 in (155 mm x 125 mm x 60mm) |
| Weight | 3.52 lb. (1.6 Kg) |
