Overview

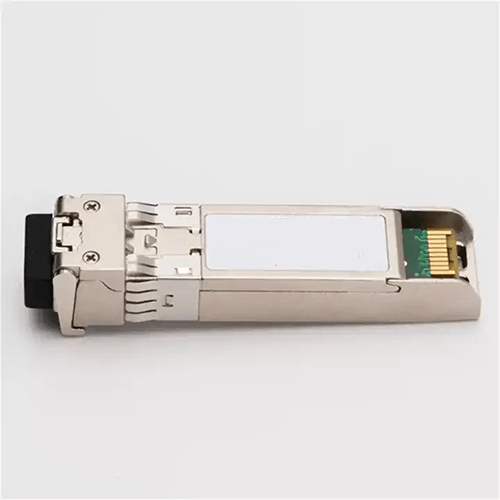

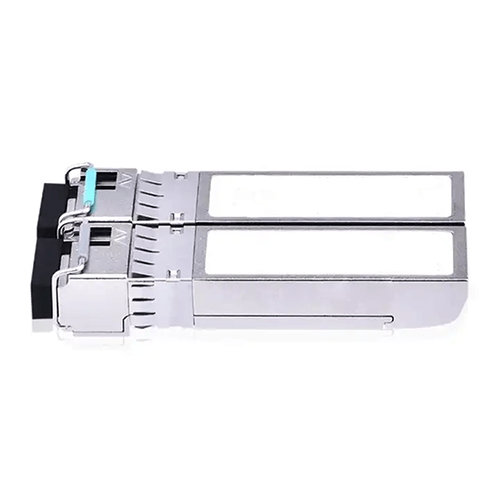

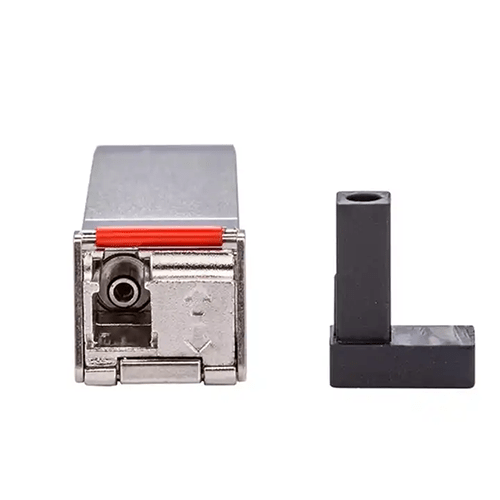

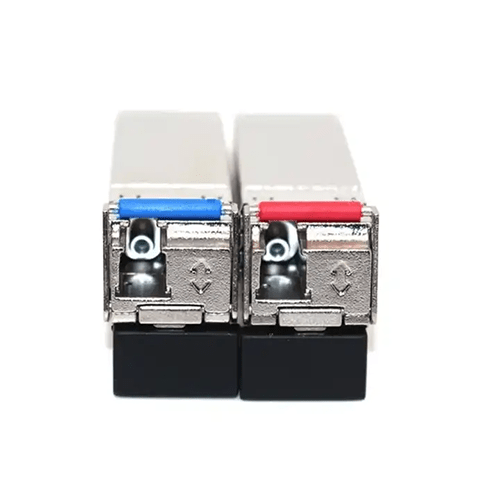

Emissions And Stack BIDI SFP module transceiver provides a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications. It is a smallest 10G form factor. Supports 10 GBASE Ethernet and OTU2 or OTU2 e. Hot – swappable input or output device that plugs into an Ethernet SFP+ port of a switch. Provides flexibility of interface choice. Supports “pay-as-you-populate” model.
Features
- Supports 1.25 Gbps or 1.0625 Gbps bit rates
- Duplex LC connector
- Hot pluggable SFP footprint
- 1310 nm VSCEL laser transmitter and PIN photodetector
- Applicable for 24.85 mi (40 km) SMF connection
- Low power consumption <0.8 W
- Digital Diagnostic Monitor Interface
- Compliant with SFP MSA and SFF – 8472
- Very low EMI and excellent ESD protection
Technical Specifications
| Data Rate | 10 G/ps |
| Distance | 12.42 mi (20 KM) |
| Transmitter | DFB |
| Receiver | PIN |
| Connector | LC |
| Temperature | Commerical 0 °F to 158 °F (0 °C to 70 °C) Industrial -40 °F to 185 °F (-40 °C to 85 °C) |
