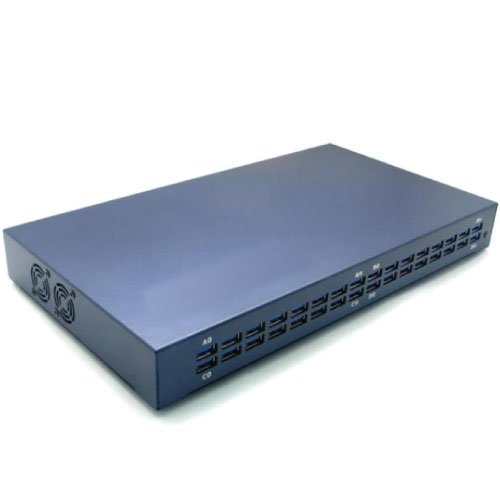

Name: Emissions And Stack Logic/Protocol Analyzer -
SKU: EMSPELA-109

Features

Spans all protocol layers from physical to transaction layer.
Feature-rich software with Transaction and Summary Profile windows for improved information density.
Hardware acceleration, OpenEYE, ScopePHY, and FastSYNC for fast data access and quicker test system confidence.
Powerful trigger and filtering capabilities to focus on data of interest.
Complete suite of probing solutions for various form factors and applications.

Technical Specifications

Automotive	CAN 2.0 B, CAN FD, DSI Bus, Flex Ray 2.1 A, LIN 2.1
PC System	eSPI, FWH, GPIB, IDE, Low Pin Count, LPC-SERIRQ, LPT, PCI, PECI, PS/2, Serial GPIO IBPI, SVID, USB 1.1, USB 2.0
IC Interface	1-WIRE, 1-Wire(Advanced), 3-WIRE, BDM, HPI, I2C, I3C, JTAG 2.0, MICROWIRE, MCU-51 DECODE, MDDI, SPI, SSI Interface, ST 7669, SLE 4442, SPI PLUS, Serial Wire Debug(SWD)
Digital Audio	AC97, AES_EBU, DSA Interface, DP AUX Channel 1.1, HD Audio, HDMI CEC, I2S, MIPI DSI, MHL-CBUS, MIDI, MIPI_CSI-2, PCM, PSB Interface, S/PDIF, STBus
Basic Logic Application	ARITHMETICAL LOGIC, DIGITAL LOGIC, JK FLIP-FLOP, UP DOWN COUNTER
Memory	Compact Flash 4.1, eMMC, I2C (EEPROM 24L), I2C (EEPROM 24LCS61 / 24LCS62), MICROWIRE (EEPROM 93C), Quad SPI, SPI Compatible (Atmel Memory), SAMSUNG K9 (NAND Flash), SD 2.0 / SDIO, SD3.0, UN I/O
Optoelectronics	7-SEGMENT LED, CCIR656, CMOS IMAGE, DALI Interface, DM114 / DM115, DMX512, LCD1602, LCD12864, SCCB, LED Pitch Array, LG4572, RGB Interface, S2Cwire / AS2Cwire
Infrared rays	IRDA, NEC PD6122, Philips RC-5, Philips RC-6, PT2262/PT2272
Power	BMS, HDQ, PMBus 1.1, QI, SMBus 2.0
Wireless	Differential Manchester, DigRF, ISO7816 UART, KEELOQ Code Hopping, MANCHESTER, MII, MILLER, MIL-STD-1553, MIPI RFFE, MODIFIED MILLER, SIGNIA 6210, SWP, WIEGAND, WWV/WWVH/WWVB
