Name: Emissions And Stack Logic Analyzer, Digital Circuits Development-Test-Analysis and Debug -
SKU: EMSPELA-110

Features

Buttons on the Logic Analyzer Hardware for Sampling Function
The Logic Analyzer hardware features buttons that control the sampling process.
One of the buttons is the START button, which initiates signal sampling when the Logic Analyzer software is activated.

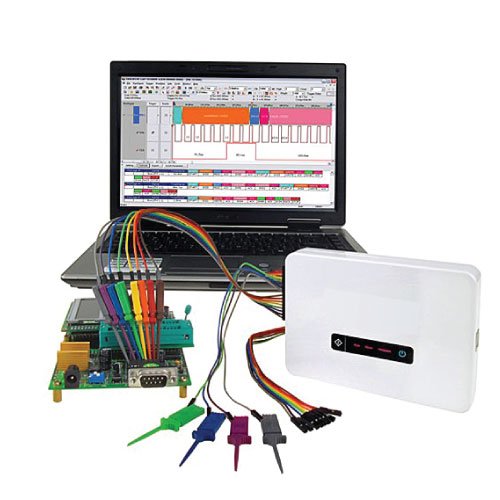

Users can conveniently capture data from the testing board by pressing the START button on the hardware.

Technical Specifications

Test Signal	Bandwidth 75 MHz
Trigger Voltage Range	-6 V to +6 V
Trigger Voltage Resolution	±0.1 V
System Support	Windows 2000 / XP / Vista / Win 7
Error in Phase	< 1.5 ns
Max. Input Voltage	±30 V
Input Resistance	500 KΩ / 10 pF
Power Supply	USB (DC 5 V, 500 mA)
Power Consumption at Rest	1 W
Max. Instant Power at Work	2 W
Software Function	Data Compression, Time Base Range, Languages
Maximum Trigger Page	8192 Pages
Protocol Analysis	Protocol Packet List, Data Contrast
Trigger Channel	16 CH
Post-Trigger	YES
Trigger Level	1 Level
Trigger Count	1 to 65535
Safety Certification	FCC / CE / WEEE / RoHS / REACH
Dimensions	125 x 92 x 25 mm
