Features
- Transceiver supports 100 G Ethernet with 4 x 25 G, OTU 4 w/ 4 x 28 G lanes
- Offering flexibility to adapt to various networking requirements
- A total data rate of 100 Gbps
- Ensures efficient, high-speed communication between network devices
- Operating at the 1310 nm wavelength
- Provides a balance between transmission distance and signal quality
- Making it suitable for medium-range optical connections
- Designed for up to 6.21 mi optical transmission
- Facilitates long-distance communication without sacrificing signal integrity

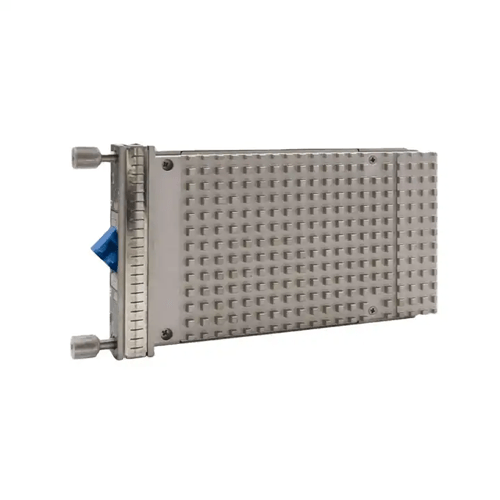

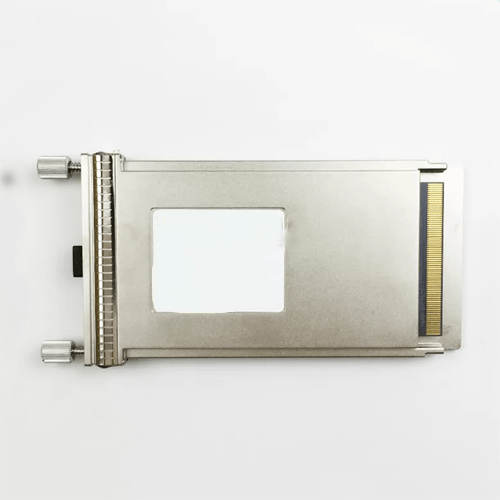

- CFP 2 form factor ensures a compact and standardized design
- Allowing for easy integration into various networking equipment
- Supports hot plugging, enabling easy installation
- Removal without interrupting the operation of the entire network
- With optimized power efficiency, it reduces energy consumption
- Contributing to overall cost savings and
- Environmentally friendly networking solutions
- DDM functionality, enabling real-time monitoring of key parameters
Technical Specifications
| Line code format | NRZ |
| Optical source type | SLM |
| Target transmission distance | 6.21 mi (10 km) |
| Signaling speed per Lane | 10.3125 Gbit/s |
| Signaling Speed Accuracy | 100 GE -100 ppm to 100 ppm |
| Minimum Lane Center Wavelength (nm) | 1264.5 nm, 1284.5 nm, 1304.5 nm, 1324.5 nm |
| Maximum Lane Center Wavelength (nm) | 1277.5 nm, 1297.5 nm, 1317.5 nm, 1337.5 nm |
| Total Average Launch Power (Max) | 8.3 dBm |
| Total Average Launch Power (Min) | -1 dBm |
| Transmit OMA per Lane (Min) | -4 dBm |
| Transmit OMA per Lane (Max) | 3.5 dBm |
| Average Launch Power per Lane (Min) | -7 dBm |
| Average Launch Power per Lane (Max) | 2.3 dBm |
| O | 3.5 dB |
