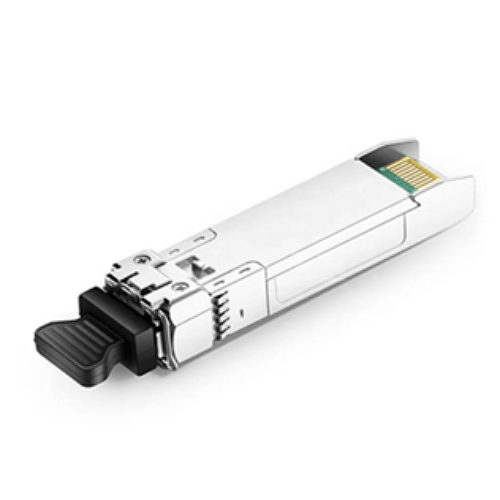

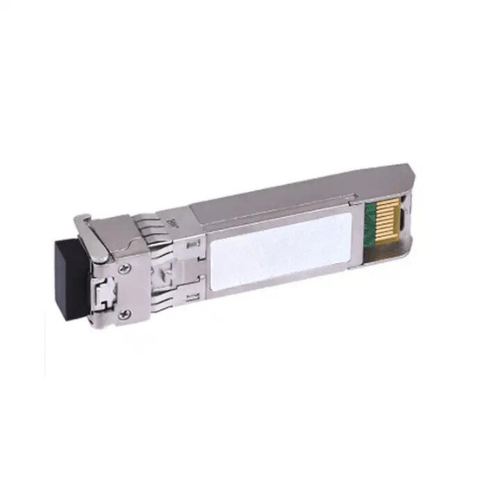

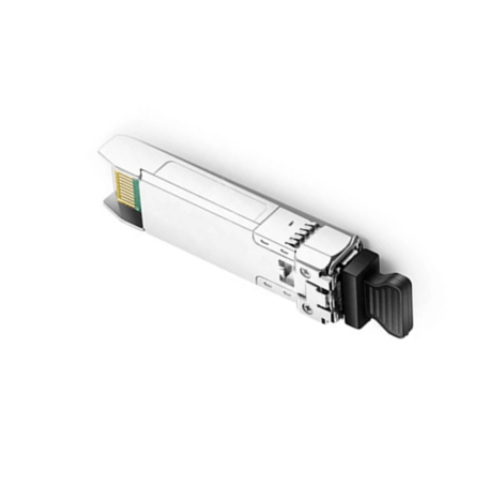

SFP+ BIDI Optical Transceiver, 11.3 Gbps, 40 km, 1.5W Power – Emissions And Stack

High-speed SFP+ BIDI optical transceiver with 11.3 Gbps, 40 km reach, and low 1.5W power dissipation, designed for reliable, energy-efficient data transmission.

SKU: EMSSPPBT-107 Category:

Features

  • SFP+ package with LC connector
  • 1270 nm DFB Laser and PIN-TIA photo detector
  • Up to 40 Km transmission on SMF
  • Up to 13 Gbps Data Links
  • Support dual CDR in TX and RX channel
  • 3 V single power supply
  • Power dissipation <1.5 W
  • 2 – wire interface with integrated Digital Diagnostic monitoring
  • Low EMI and excellent ESD protection
  • Laser safety standard IEC-60825 compliant
  • Compatible with RoHS



Technical Specifications

Bit Rate 11.3 Gbps
Transmission 24.85 mi (40 km)
Power Supply 3.3 V
Power Dissipation <1.5 W
Wavelength 1270 nm to 1330 nm
Spectral Width 1 nm
Output Power 4 dBm
Extinction Ratio 3.5 dB
Side-mode Suppression Ratio 35 dB
