Overview

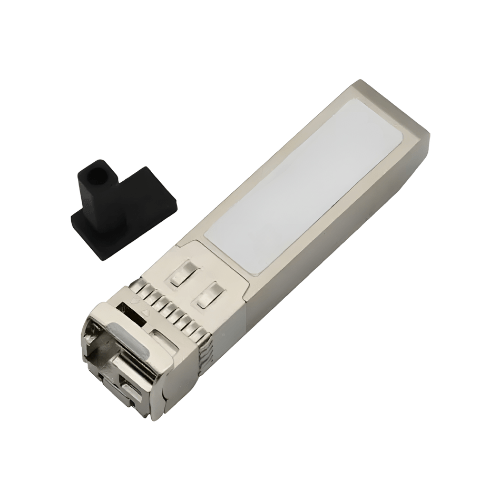

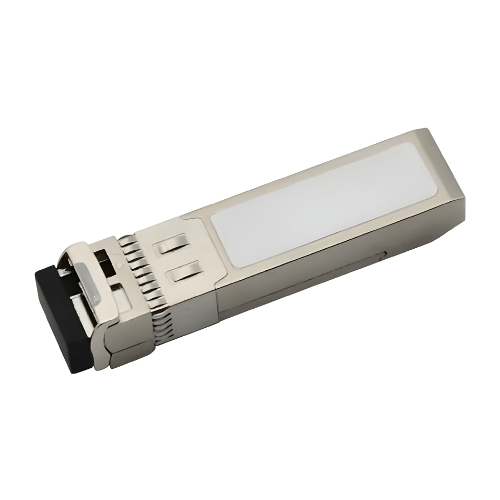

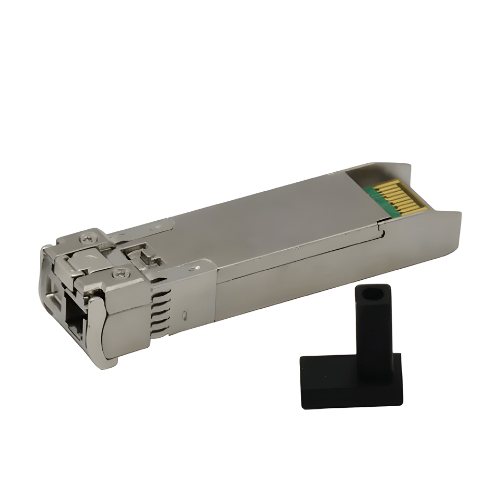

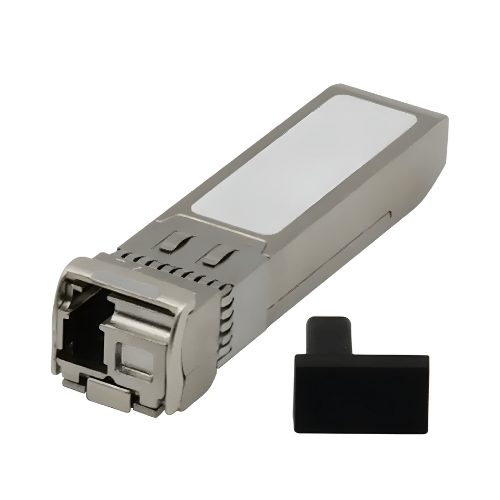

Emissions And Stack 40 KM LC optical SFP+ BIDI transceiver is beneficial to increase the capacity of the data center, increase the port density and reduce the power consumption. The optical transceiver we supply has undergone strict compatibility testing to ensure product reliability, stability, and full compatibility with various brands switches and other equipment, with low power consumption, small size, high speed and other characteristics.
Features
- Up to 11.3 G/s data links
- DFB laser transmitter and PIN photodetector
- Up to 24.85 mi on 9 µm, 125 µm SMF
- Hot-pluggable SFP footprint
- Single LC, UPC type pluggable optical interface
- Low power dissipation
- Metal enclosure, for lower EMI
- RoHS compliant and lead-free
- Single 3.3 V power supply
- Support Digital Diagnostic Monitoring interface
- Compliant with SFF-8472
- Case operating temperature
Technical Specifications
| Form Factor | SFP+ |
| Data Rate | 9.95 G to 11.3 G, 10 G |
| Wavelength | Tx 1270 nm, Rx 1330 nm |
| Laser | DFB, PIN |
| Distance | 6.21 mi (10 KM), 12.49 mi (20 KM), 24.85 mi (40 KM), 37.28 mi (60 KM), 49.71 mi (80 KM) |
| Medium | SMF |
| Connector | Simplex LC |
| Use | FTTX |
| Network | Wireless Lan, Wired LAN, 4G, 3G |
| Port | LC |
| No. of Fiber | 1 |
| Temperature | 32 ℉ to 158 °F (0 ℃ to 70 °C) |
