Features

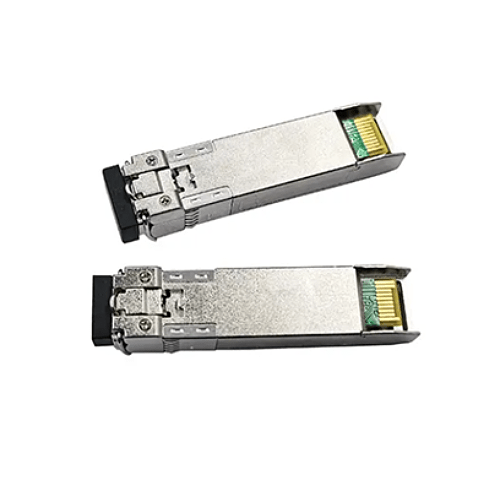

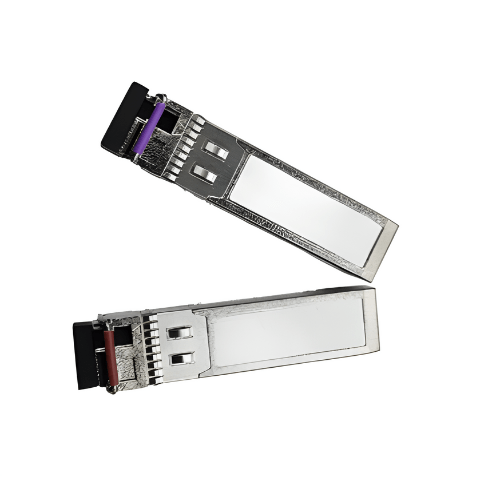

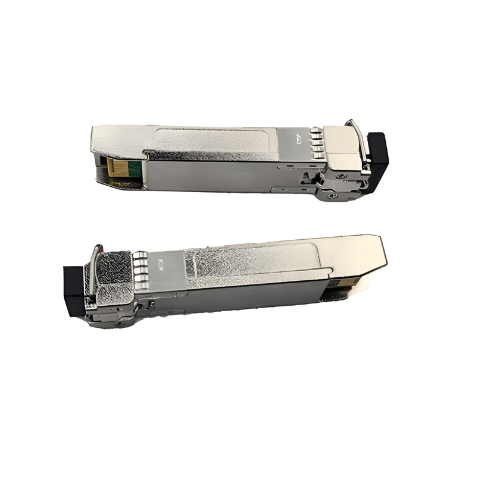

- 20 km, Single LC SFP+ Transceivers
- Device Type Plug-in module
- Form Factor SFP+
- Date Rate 10.3 Gbps
- Wavelength Tx 1270 nm/ Rx 1330 nm
- Power Budget 12 dB
- Max Reach Distance 12.42 mi (20 km)
- Transmit Power of -2 dBm to 2 dBm
- Receive Sensitivity of -14 dBm
- Voltage of 3.3 V
- Power Consumption of <1.5 W
- Connector Single LC
- Fiber Type SMF
- Operation Temperature with 32 ºF to 158 ºF (0 ºC to 70 ºC)
- Application 10 G/ 10 G FC
Technical Specifications
| Data Rate | 10.3 Gbps |
| Wavelength | Tx 1270 nm to Rx 1330 nm |
| Power Budget | 12 dB |
| Reach Distance | 20 km |
| Transmit Power | -2 dBm to 2 dBm |
| Receiver Sensitivity | -14 dBm |
| Voltage | 3.3 V |
| Power Consumption | <1.5 W |
| Temperature | 32 ºF to 158 ºF (0 ºC to 70 ºC) |
