Overview

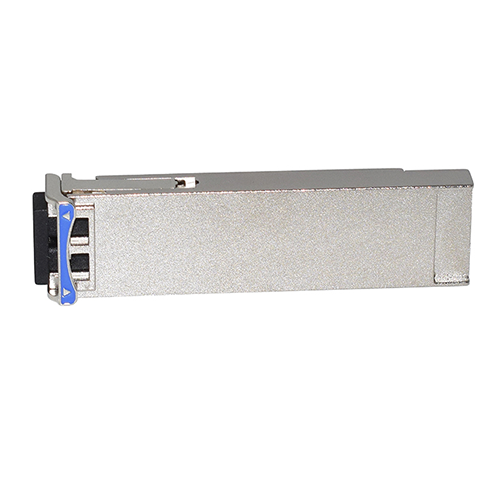

Emissions And Stack’s XFP Optical Transceiver 10GBASE-LR 1310nm 10km LC Module is a high-performance solution designed for Ethernet and telecom applications. This product supports data rates from 9.95 Gbps to 11.1 Gbps and complies with the XFP MSA standard, making it hot-pluggable with a duplex LC connector. It features a digital diagnostic monitoring interface, uncooled 1310 nm DFB laser, and operates on a single +3.3 V power supply. This device offers low EMI, excellent ESD protection, and power consumption below 2.5 W. With an operating temperature range of 32 °F to 158 °F (0 °C to 70 °C), this product provides cost-effective and reliable connectivity for 10GBASE-LR/LW Ethernet, SONET OC-192, and SDH STM-64 optical links.
Features
- Hot-pluggable XFP form factor
- Supports 9.95 Gbps to 11.1 Gbps bit rates
- Power consumption below 2.5 W
- Duplex LC connector, compliant with XFP MSA standard
- Digital Diagnostic Monitoring (DDM/DOM) support
- Low EMI with strong ESD protection
- Operates with uncooled 1310 nm DFB laser
- Single +3.3 V power supply
- Wide operating temperature range of 32 °F to 158 °F (0 °C to 70 °C)
- No reference clock required
Technical Specifications
| Form Factor | XFP Optical Transceiver |
| Data Rate | 9.95 Gbps to 11.1 Gbps |
| Wavelength | 1310 nm |
| Transmission Distance | 10 km (6.21 mi) |
| Connector Type | Duplex LC |
| Fiber Type | Single-Mode Fiber (SMF) |
| Power Supply Voltage | +3.3 V |
| Power Consumption | Less than 2.5 W |
| Diagnostic Monitoring | Digital Diagnostic Monitoring (DDM/DOM) |
| EMI/ESD Performance | Very low EMI with strong ESD protection |
| Operating Temperature | 32 °F to 158 °F (0 °C to 70 °C) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Weight | 0.77 oz (22 g) |
| Dimensions | 3.14 in x 0.52 in x 0.33 in (80 mm x 13.2 mm x 8.5 mm) |
