Features

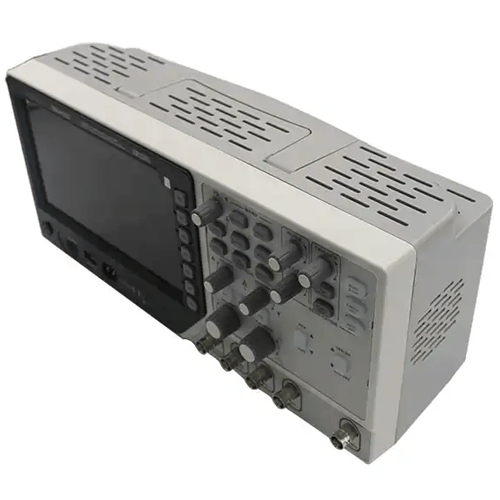

- 2 Channel Digital Oscilloscope + Arbitrary/Function Waveform Generator + Synchronizing Signal + External Trigger;
- The Keys for oscilloscope and waveform generator are separated for convenient to operate it simultaneously;
- Large and clear display 7 in (17.78 cm) 64K colour LCD display, Resolution 800 pixels x 480 pixels), clearer and more realistic waveform;
- Oscilloscope: 1GSa/s Sample Rate, 200/100/70MHz Bandwidth, more than 20 kinds of auto measurement functions;
- Powerful Trigger Function: Edge, Video, Pulse, Slope, Over time, Alternative;
- Arbitrary/Function Waveform Generator: 25MHz, 12 bits resolution, 200MHz DDS, Arbitrary wave/square wave/sine wave/triangle wave/trapezoidal wave/pulse wave/DC is easy to simulate transducer.
- Support SD card, VGA function (optional);
- Integrated USB Host, Support USB disk storage, USB interface/SD card system update.
Technical Specifications
| Sampling Rate Range | 1 GSa/s |
| Equivalent Sample Rate | 25 GSa/s |
| Inputs Coupling | AC, DC, GND |
| Probe Attenuation | 1X, 10X |
| Record Length | 40 K |
| Bandwidth | 100 MHz |
| Rise Time at BNC (Typical) | 3.5 ns |
| Holdoff Range | 100 ns to 10 s |
| Pulse Width Range | 20 ns to 10 s |
| Size | 15.16 in x 7.87 in x 9.65 in (38.5 cm x 20 cm x 24.5 cm) |
| Weight | 11.02 lb (5 kg) |
