Overview

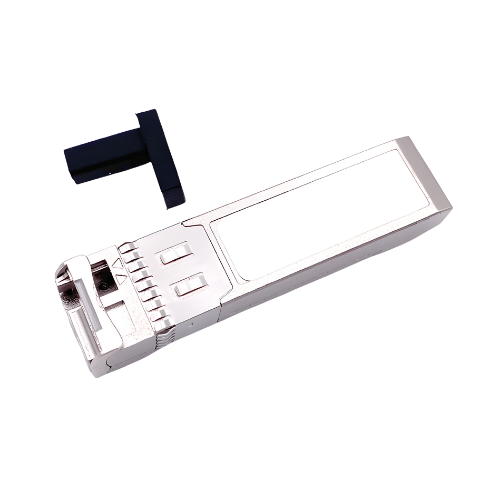

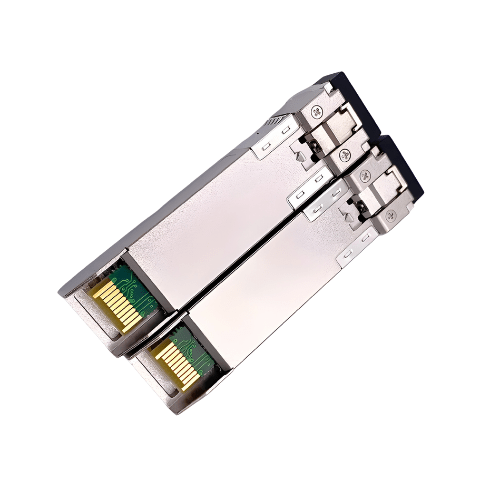

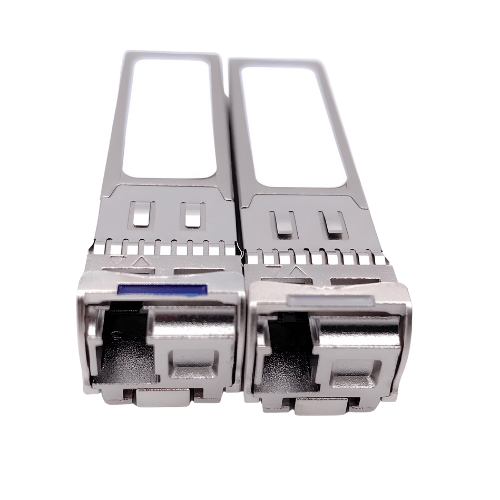

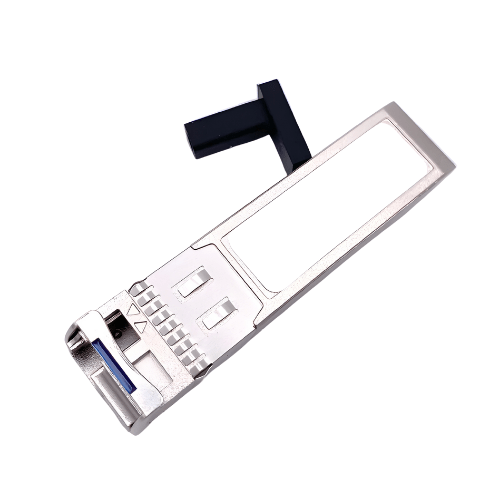

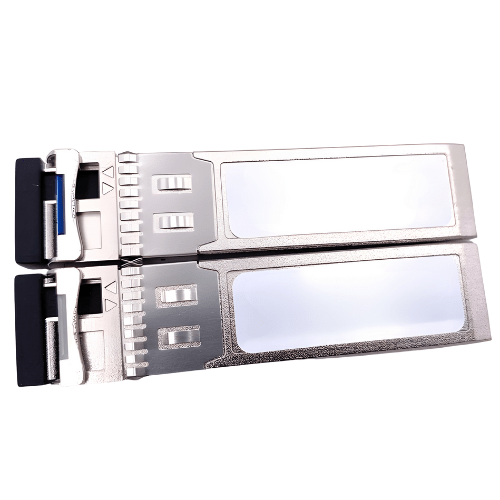

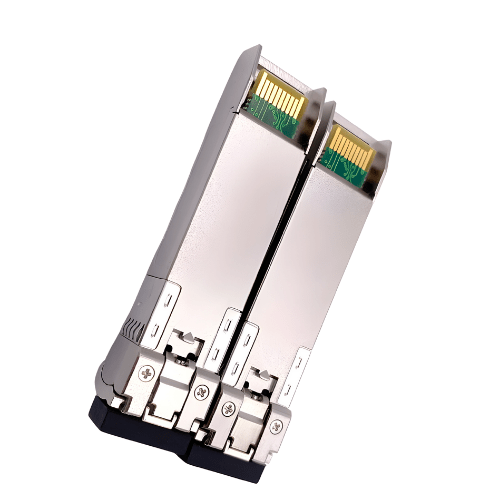

Emissions And Stack high quality optical SFP+ BIDI transceiver module is a small form factor pluggable module for duplex optical data communications such as 10 GBASE-LR, LW defined by IEEE 802.3 a, e. It is with the SFP+ 20-pin connector to allow hot plug capability. The module is designed for single mode fiber and operates at a nominal wavelength of 1270 nm or 1330 nm. The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
Features
- Supports 9.95 Gb/s to 10.3 Gb/s data rates
- Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
- Single 3.3 V Supply
- Up to 12.49 mi on 9 um, 125 um SMF
- A 1270 nm DFB Laser transmitter, 1330 nm receiver
- B 1330 nm DFB Laser transmitter, 1270 nm receiver
- Compliant with IEEE 802.3 ae 10 GBASE-LR and 10 GBASE-LW
- SFP+ MSA SFF-8431 Compliant
- Digital Diagnostic SFF-8472 Compliant
- RoHS compliant and Lead Free
Technical Specifications
| Data Rate | 10 G |
| Wavelength | 1270 nm, 1310nm |
| Distance | 12.49 mi (20 KM) |
| Connector | LC |
| Fiber Type | SM |
| DDM | Yes |
| Operating case temperature (Standard) | 32 ℉ to 158 ℉ (0 ℃ to 70 ℃) |
