Overview

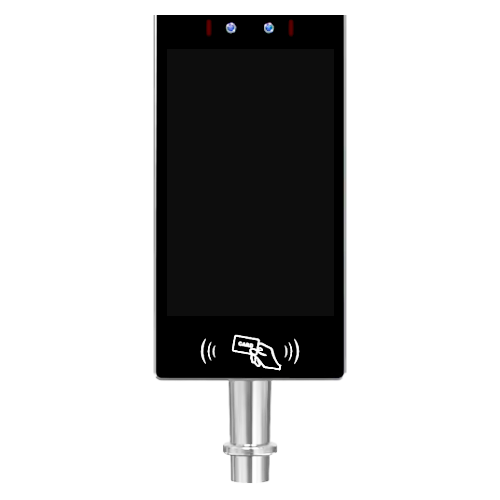

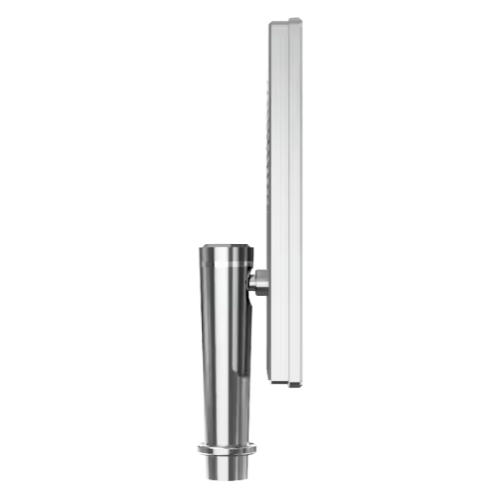

GAOTek Biometric Access Control with 300K Log Storage & Night Vision is a convenient and secure visual face recognition terminal designed for various applications, including smart communities, access control channels, facial attendance, hotels, office buildings, schools, and shopping malls. This device enhances intelligent security management and control.
It utilizes advanced face detection and live recognition algorithms, supporting a database of up to 20,000 faces. The live detection and face recognition process takes less than 0.25 seconds, ensuring rapid and efficient authentication. The device operates on a Linux-based system and can accommodate up to 30,000 face entries in its base library.
Technical Specifications
| Name | Specification/model |
| CPU | RK3288 (4 CoreCortex-A17) |
| System | Android 8.1 |
| Camera | Wide dynamic 2(Number of dual USB:2)/Pixel: 200W White light fill light (Included) Infrared fill light (Included) |
| Display Screen | MIPI screen (8 inches, 1280*800 resolution) |
| Touch Screen | Capacitance optional |
| RAM | DDR 2G |
| ROM | EMMC 8G |
| WIFI | Support |
| Bluetooth | Support |
| MIC | MIC |
| Speaker | 8Ω1W |
| Network Port | Rj45 (10/100/1000Mbps Ethernet) |
| Power | Adapter DC12V/2A |
| Device Power Consumption | 30W max |
| Wiegand | Support Wiegand send and Wiegand receive, support Wiegand 26, 34 format |
| USB Interface | Support access to the second-generation ID card reader |
| Relay Interface | COM/NO |
| RS232 Interface | Support extended functions |
