Overview

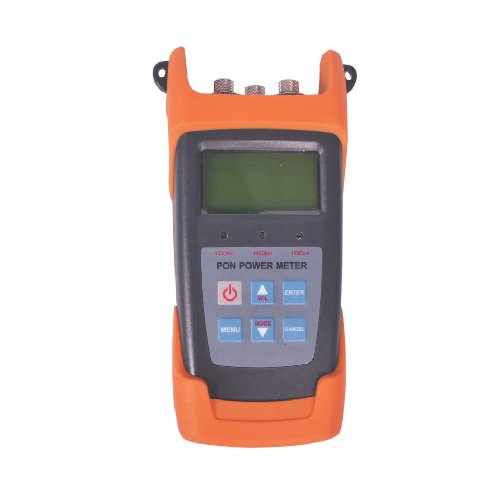

Emissions And Stack Digital Fiber Optical Power Meter is a specialized electronic instrument used to measure the optical power or energy of light signals transmitted through optical fibers. It plays a crucial role in fiber optic communication systems and is commonly employed in various applications, including telecommunications, data centers, networking, fiber optic installations, and maintenance.
Features
- It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.
- Providing simultaneous measurement for all three wavelengths on the fiber (1490 nm, 1550 nm,1310 nm )
- Used in Burst mode measurement of 1310nm upstream.
- Use the software connect with PC, setting the threshold, data transfer, and calibration the wavelength.

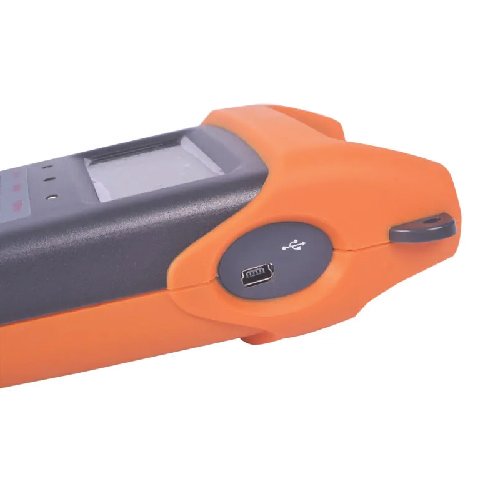

- USB communication port enables data transfer to a PC.1000 measurement item can be saved in SFT3213 PON power meter or computer for data review.
Technical Specifications
| Detector Type | InGaAs |

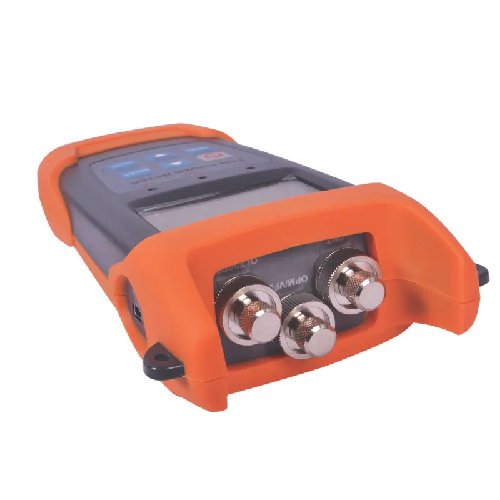

| Optical Connector | FC/SC/ST Interchangeable/2.5 universal adapter |
| Fiber Type | SM 9/125 um |
| Measurement Unit | dB/dBm |
| Resolution (dB) | 0.01 dB |
| Operation Voltage(V) | DC 3.3 V to 5.5 V |

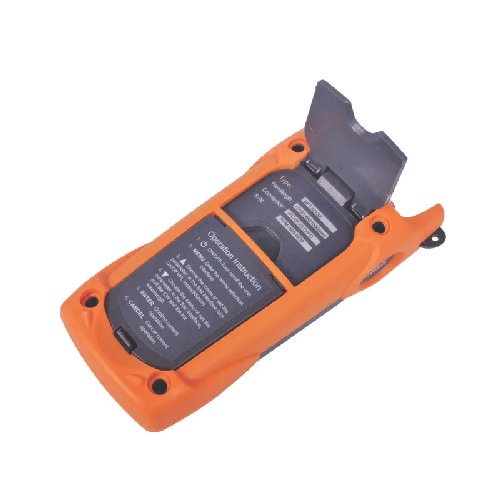

| Power Supply | 3pc 1.5 V battery |
| Continuously Operation time (h) | PON:90 h |
| Connatural uncertainty(dB) | ± 0.5 dB |
| Linearity(dB) | ± 0.1 dB |
| Passing through insertion Loss(dB) | < 1.5 dB |
| Operation environment (Temperature) | 14 °F to 140 °F ( -10 °C to 60 °C ) |
| Storage Temperature | -13 °F to 158 °F ( -25 °C to 70 °C ) |
| Weight | 0.93 lb. (423 g) |
