Features
- 32-bit core processor

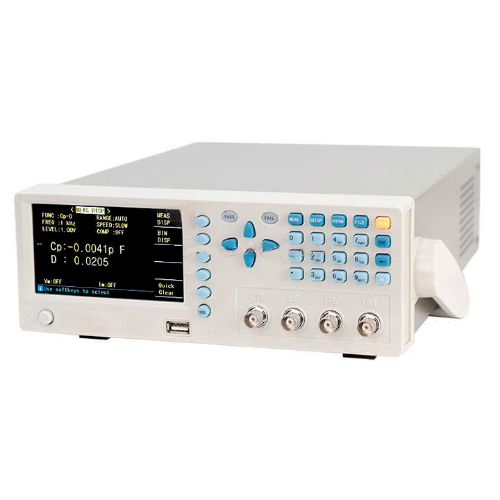

- 5-digit 4.3-inch TFT LCD display
- 2 signal source output impedance 30 Ω, 100 Ω
- List mode function, 10 steps
- 100 sets memories for internal storage/save
- 500 memories for U disk storage/save, supports FAT16 and FAT32 files
- Save the last parameter settings before power off

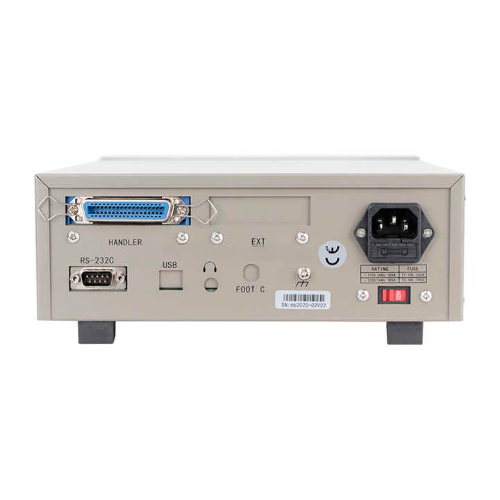

- Standard interface: RS-232, HANDLER, USB HOST
Technical Specifications
| Type | LCR Meter |
| Accuracy Class | 0.10% |
| Measurable Resistance Range | 0.01 mΩ to 99.999 mΩ |
| Certificate | CE |
| Test Frequency | 40 Hz to 200 kHz |
| Basic Accuracy | 0.10% |
| Output Impedance | 30 Ω, 100 Ω |
| Test Level | 0.05 V to 1 V |
| Memory | Internal 100 sets, External 500 sets |
| Interface | RS232, USB HOST, HANDLER |
| List Mode Function | 10 steps |
