Overview

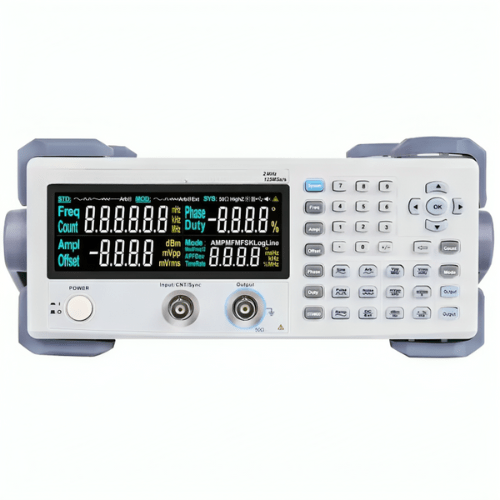

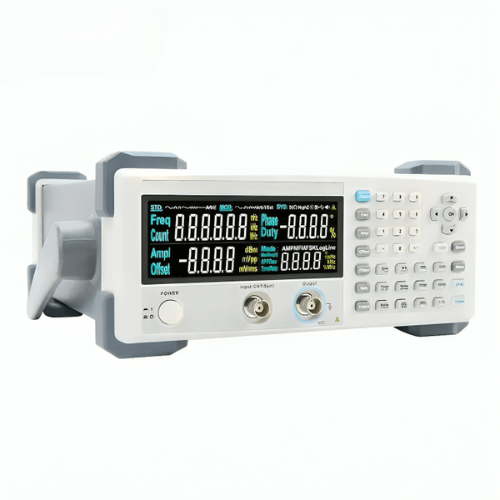

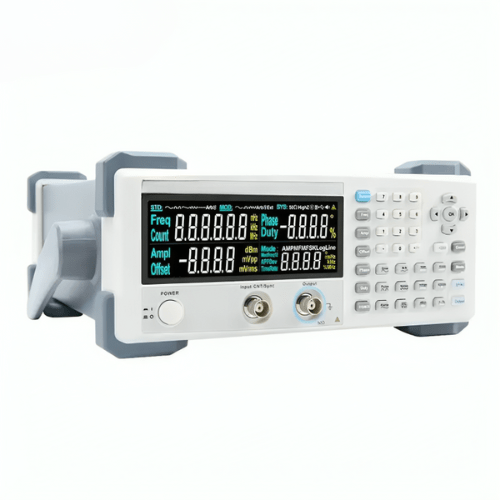

Emissions And Stack arbitrary waveform generator is an economical single channel Waveform Generator with convenient operation interface. The Series can generate 20 types of Arbitrary Waveform with sampling rate up to 125 MS/s, MAX frequency 5 MHz, 14-bit vertical resolution.
Technical Specification
| Max. Output Frequency | UTG9002C-II 2 MHz, UTG9005C-II 5 MHz |
| Modulation Types | AM, FM, PM, FSK |
| Interfaces | USB Device |
| Channels | 1 |
| Sample Rate | 125 MSa or s |
| Sweep Mode | Linear, Logarithmic |
| Waveforms | Sine Wave, Square Wave, Ramp Wave, Pulse Wave, Noise, Direct Current, Arbitrary Waveform (Built-in 20 Groups) |
| Vertical Resolution | 14-bit |
| Built-in Arbitrary Waveform | 20 sets |
| Display | EBTN LCD |
| Power | 100 V to 240 V AC 50 Hz or 60 Hz |
| Output Amplitude Range | 2 m Vpp to 20 Vpp continuously adjustable |
| Output Frequency Range | Sine wave 2 MHz, Square wave 2 MHz |
| Built-in Arbitrary Waveform | 20 kinds, frequency range 1 μHz to 1 MHz |
| Size | 10.4331 in x 4.33071 in x 12.5984 in (265 mm x 110 mm x 320 mm) |
| Weight | 6.83433 lb (3.1 kg) |
