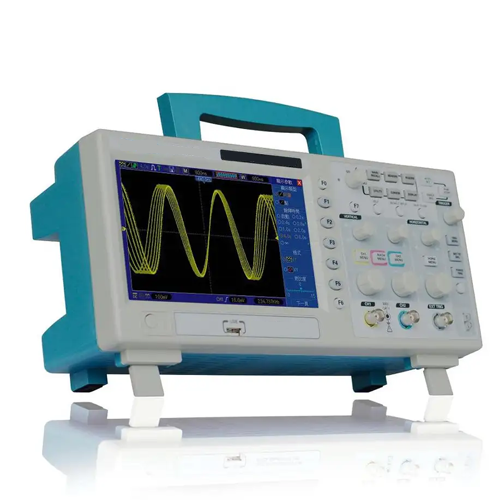

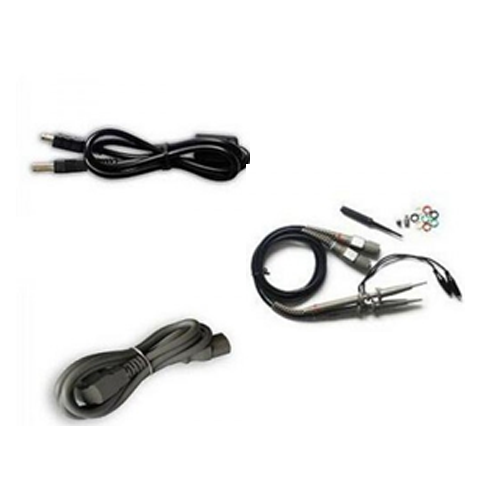

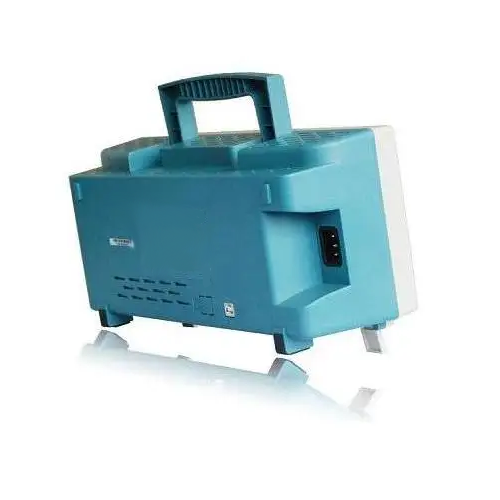

Features
- 00 MHz or 100 MHz or 60 MHz bandwidth
- 1 GSa/s Real Time sample rate
- Large 7 in (17.78 cm) colour display, WVGA (800 x 480)
- Record length up to 2 M
- Trigger mode: edge, pulse width, line selectable video, slop, overtime etc
- USB host and device connectivity, standard
- Multiple automatic measurements
- Four math functions, including FFTs standard
- VGA Optional
Technical Specifications
| Real time sample | 1 GS/s |
| Equivalent Sample | 25 GS/s |
| Normal | Normal data only |
| Peak Detect | High-frequency and random glitch capture |
| Average | Waveform average, selectable 4,8,16,32,64,128 |
| Inputs | |
| Inputs Coupling | AC, DC, GND |
| Inputs Impedance | 1 MΩ ±2% || 20 pF ±3 pF |
| Probe Attenuation | 1 X, 10 X |
| Supported Probe Attenuation Factor | 1 X, 10 X, 100 X, 1000 X |
| Sample Rate Range | 500 MS/s to 1 GS/s |
| Waveform Interpolation | (Sin x)/x |
| Record Length | 2 M |
| SEC or DIV Range | 2 ns/div to 40 s/div |
| Sample Rate and Delay Time Accuracy | ±50 ppm (at over any ≥1 ms time travel) |
| Position Range | 2 ns / div to 8 ns div |
| Bandwidth | 200 MHz |
| Rise Time | 1.8 ns |
| Bandwidth Limit | 20 MHz |
| Low frequency response | ≤10 Hz at BNC |
| Size | 126 in x 11.8 in x 4.3 in (32 cm x 30 cm x 11 cm) |
| Weight | 11 lb (5 kg) |
