Overview

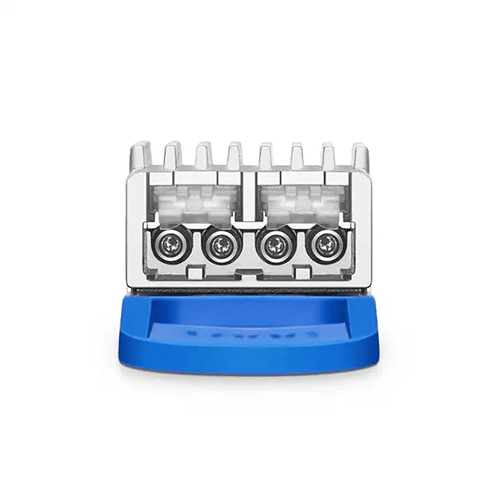

Emissions And Stack compatible 100 G transceiver module supports multiple 100G links up to 49.7 mi (80 km) using TDCM and EDFA over single-mode fiber (SMF) via a CS connector. PAM4 modulation technology allows for DWDM connectivity in a QSFP 28 form factor on the 100 G ITU DWDM wavelength grid. This transceiver is compliant with IEEE 802.3 bm, QSFP 28 MSA, SFF-8636 and SFF-8024 standards. The built-in digital diagnostics monitoring (DDM) allows access to real-time operating parameters. Featuring low power consumption, high speed and long transmission distance, this transceiver is ideal for DCI, 100 G Ethernet Metro-Access over DWDM, Campus and Enterprise Links, etc.
Technical Specifications
| Max Data Rate | 100 Gbps (2 x 50 G) |
| Wavelength | 1560.61 nm to 1559.79 nm |
| Max Cable Distance | 49.7 mi (80 km) with EDFA and TDCM |
| Connector | Duplex CS |
| Cable Type | SMF |
| Transmitter Type | EML |
| Receiver Type | PIN |
| DDM/DOM | Supported |
| TX Power | -1 dBm to 4 dBm |
| Receiver Sensitivity | ≤-12.5 dBm |
| Power budget | 11.5 dBm |
| Receiver overload | ≥5 dBm |
| Power Consumption | ≤5 W |
| Extinction Ratio | 6 dB (Typ.) |
| Modulation Format | PAM 4 |
| Protocols | IEEE 802.3 bm, QSFP28 MSA, SFF-8636, SFF-8024 |
| Commercial Temperature Range | 32 °F to 158 °F (0 °C to 70 °C) |
