Features

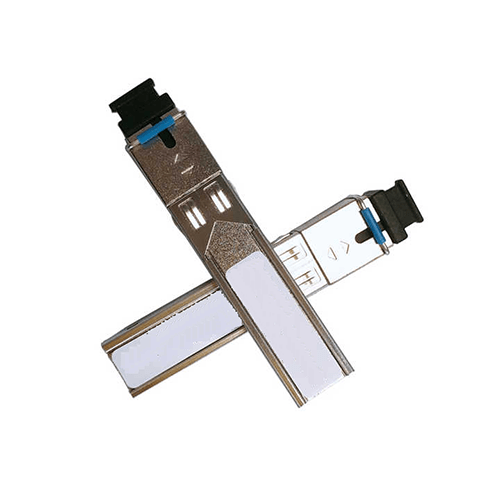

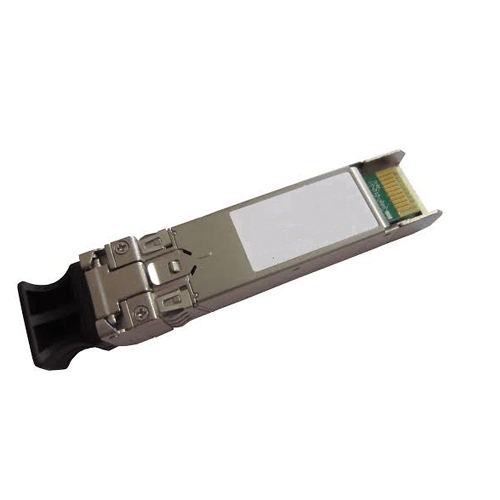

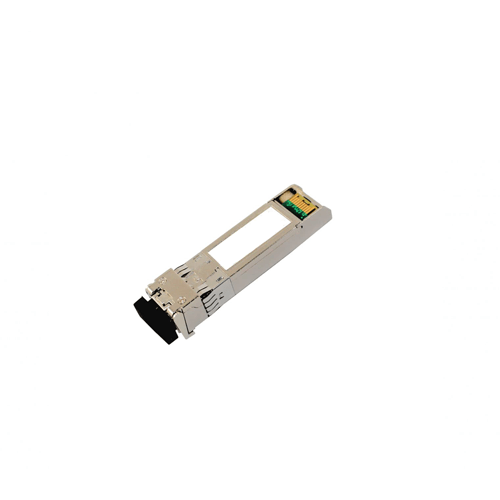

- SFP with SC or UPC Receptacle Transceiver
- 1490 nm DFB Tx
- 1310 nm APD Rx
- Digital diagnostics SFF-8472 Compliant
- 1250 Mbps continuous mode Transmission
- 1250 Mbps Burst mode receiver Data Rate
- Provide fast RSSI function
- Operation case temperature: 32 °F to 158 °F (0 °C to 70 °C)
- Complies with RoHS directive (2002 / 95 / EC)
Technical Specifications
| Optical transmitter power | 7 dBm to 11 dBm |
| Optical transmitter power off | -39 dBm |
| Output center wavelength | 1480 nm to 1500 nm |
| Output spectrum width | 1.0 nm |
| Extinction ratio | 9 dB |
| Optical rise time | 260 ps |
| Optical fall time | 260 ps |
| Data rate | 1.25 Gb / s |
| Differential input impedance | 80 ohm to 120 ohm |
| Power supply | 3.1 V to 3.5 V |
| Total power supply current | 350 mA |
| Sensitivity | -33.5 dBm to -32 dBm |
| LOS Output voltage | 2 V |
| RSSI Triger -Low | 0 V to 0.8 V |
| Storage temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Operation case temperature | 32 °F to 158 °F (0 °C to 70 °C) |
