Overview

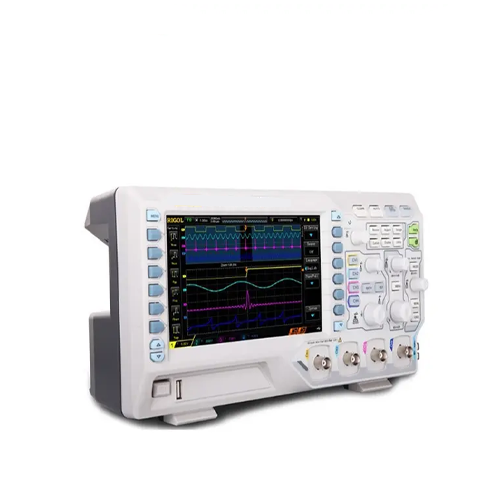

Emissions And Stack Digital Oscilloscope is the new economic level Digital Oscilloscope from Rigoll to meet the customer’s applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. This channel oscilloscopes come in 70 or 100 MHz versions with a 7 in (17.78 cm) display, Ultra Vision technology, and a host of options. Add the optional analysis, decoding, deep memory, and integrated 2-channel waveform generators for a powerful 4-channel scope at an exceptional price.
Features
- 70 MHz Bandwidth, 4 channels
- 1 GSa/s Real-time Sample Rate
- 12 Mpts and 24 Mpts Memory Depth
- Innovative Ultra Vision technology
- Up to 30,000 wfms/s Waveform Capture Rate

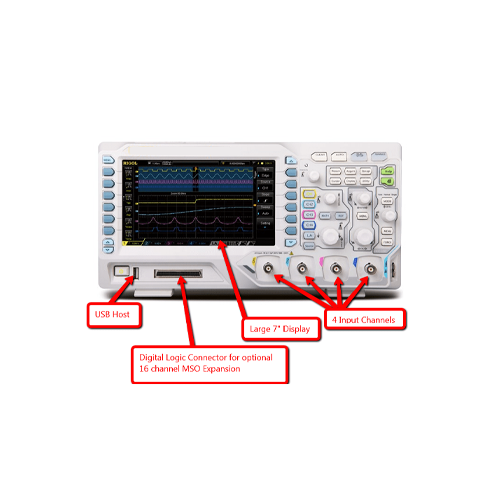

- 7 in (17.78 cm) WVGA (800 x 480), multiple intensity levels waveform display
Technical Specifications:
| Bandwidth | 70 MHz |
| Analog Channels | 4 |
| Sample rate | 1 GSa/a |
| Max memory depth | 12 Mpts |
| Max. Waveform Capture rate | 30,000 wfms/s |
| Reply and Analysis function | 60,000 frames |
| Probes | RP 2200 150 MHz BW |
| Built in | 2 CH |
| Size | 7.9 in x 7.9 in x 7.9 in (20 cm x 20 cm x 20 cm) |
| Weight | 8.82 lb (4 kg) |
