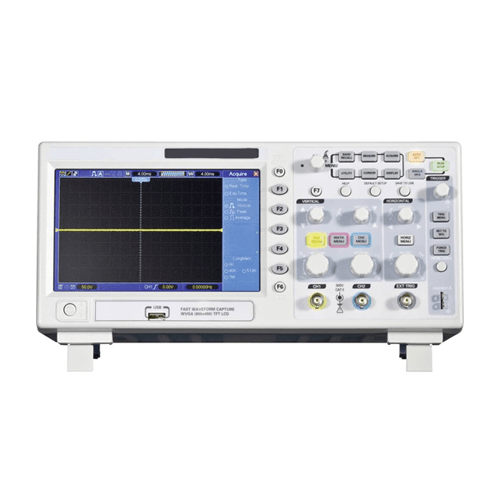

Features
- Support logic analyser and oscilloscope
- 1GSa/s sampling rate and 50GSa/s equivalent sampling rate
- 1024k recording length
- 7 in (17.78 cm) wide screen 64k colour TFT display
- USB-host for save and update
Technical Specification
| Technical Data | DQ1062D |
| Channels | 2 channels oscilloscope + 16 channels logical analyser |
| Sampling Rate | 1 GSa/s |
| Equivalent Sampling Rate | 25 GSa/s |
| Sensitivity And Accuracy | 2 mV or div to 5Vor div |
| Vertical Resolution | 8 bits |
| Width Of Band (-3 dB) | DC (AC 10 Hz) to 60 MHz |
| Selectable Analog Bandwidth Limit |
20 MHz |
| Rise Time | ≤5.8 ns |
| DC Gain Accuracy | ± 4% (2 mV or div to 5 mV or div) ±3% (10 mV or div to 5V or div) |
| DC Measurement Accuracy | ± (3% R dg. + 0.1div + 1mV) (10 mV or div to 5 V) ± (3% (R dg. + vertical position) + 0.2div +1% (vertical position) (2 mV or div to 200mVor div, +2 mV; 200 mV or div to 5V to div, +50 mV) |
| SEC or DIV Range | 2 ns to 40 s or div, at 2-4-8 increment |
| Waveform Interpolation | Sin(x)/x |
| Recording Length | 1024 k |
| Sampling Rate and Delay Time Accuracy |
±50 ppm (any time interval 1ms) |
| Delta Time Measurement Accuracy | Single: ± (1 sampling time interval + 100 ppm × R dg. + 0.6 ns) Average values: ± (1 sampling time interval + 100 ppm × R dg. + 0.4 ns) |
